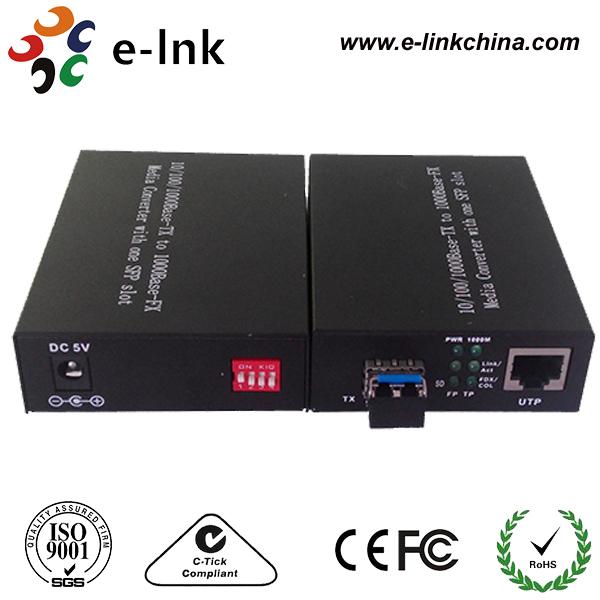

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

50/125μm or 62.5/125μm multi-mode fiber cable provides up to 220 & 550 meters

9/125μm single-mode cable provides long distance of 10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/ 120km (vary on SFP module)

Port

Copper: 1 x 10/100/1000Base-T port

Fiber: 1 x 1000Base-X SFP slots

Conversion means

Store and Forward mode or Cut-Through mode

Buffer space

Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

<19^-9

MTBF

100,000 hours

LED indicator

PWR (power supply), 1000M (UTP Port Speed), LNK/ACT FX (Fiber Port Link/Action Status), LNK/ACT TX (UTP Port Link/Action Status), SD (Fiber Signal Status), FDX/COL (UTP Port Full Duplex)

Power supply

External: AC90~264V/DC100~380V input, 5V1A output

Power consumption

<40W (the chassis at full load), <2W

Dimension (LxWxH)

94x70x26mm

Operating temperature

0~70ºC

Operating humidity

5%~90%

Maintaining temperature

-45~80ºC

Maintaining humidity

5% ~ 90% non-condensing
