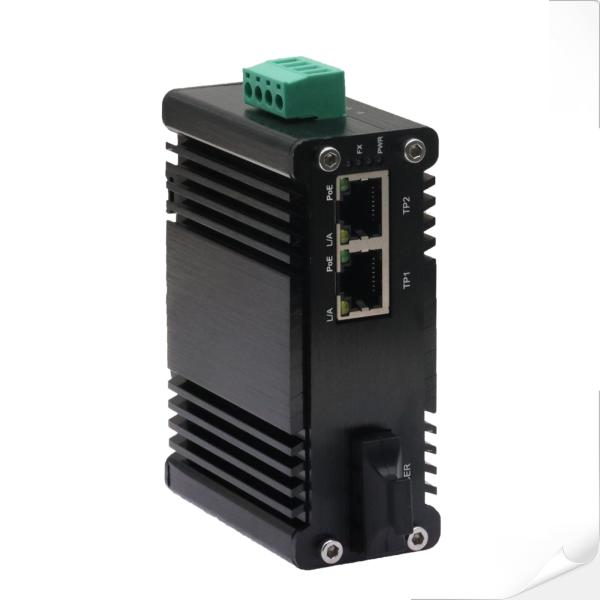

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter

Name: Mini Industrial 1Port 1000X to 2Port 101001000X 30W PoE Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter Manufactures

Brand Name : E-link

Model Number : ZP-HIMC1200GP Series

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 95 x 70x 36mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 2-pin terminal block

Casing : Aluminum Case

Contact Now

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter

Advantages

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1- Port 1000Base-X SC

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The ZP-HIMC1200GP Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 30W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The ZP-HIMC1200GP Series is easy to mount on a DIN rail or in distribution boxes.


Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter

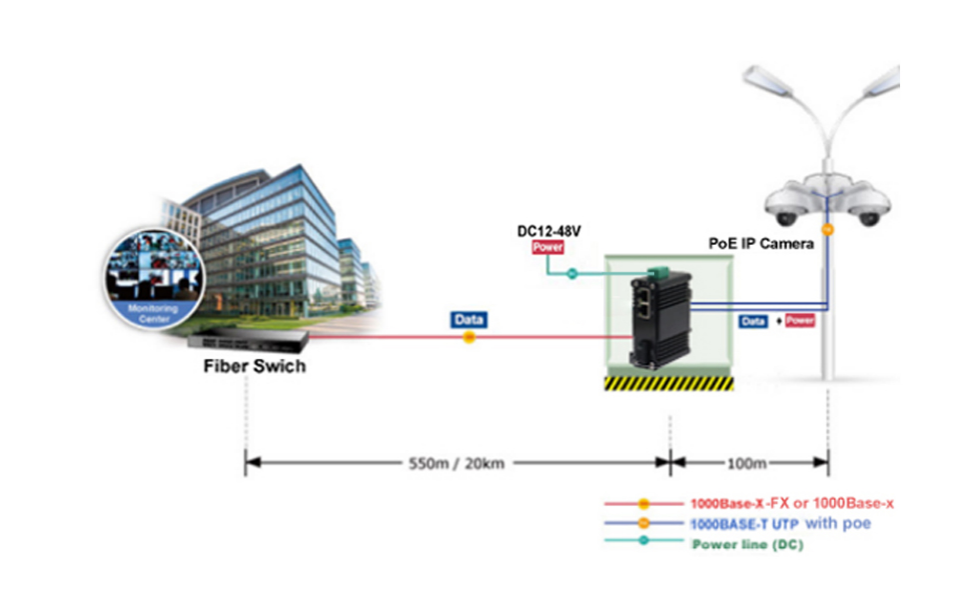

Application

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter

Ordering Information

Model	Description
ZP-HIMC1200GP	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
ZP-HIMC1200GP-20	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
ZP-HIMC1200GPS-20	Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Mini Industrial 1-Port 1000X to 2-Port 10/100/1000X 30W PoE+ Media Converter Images
