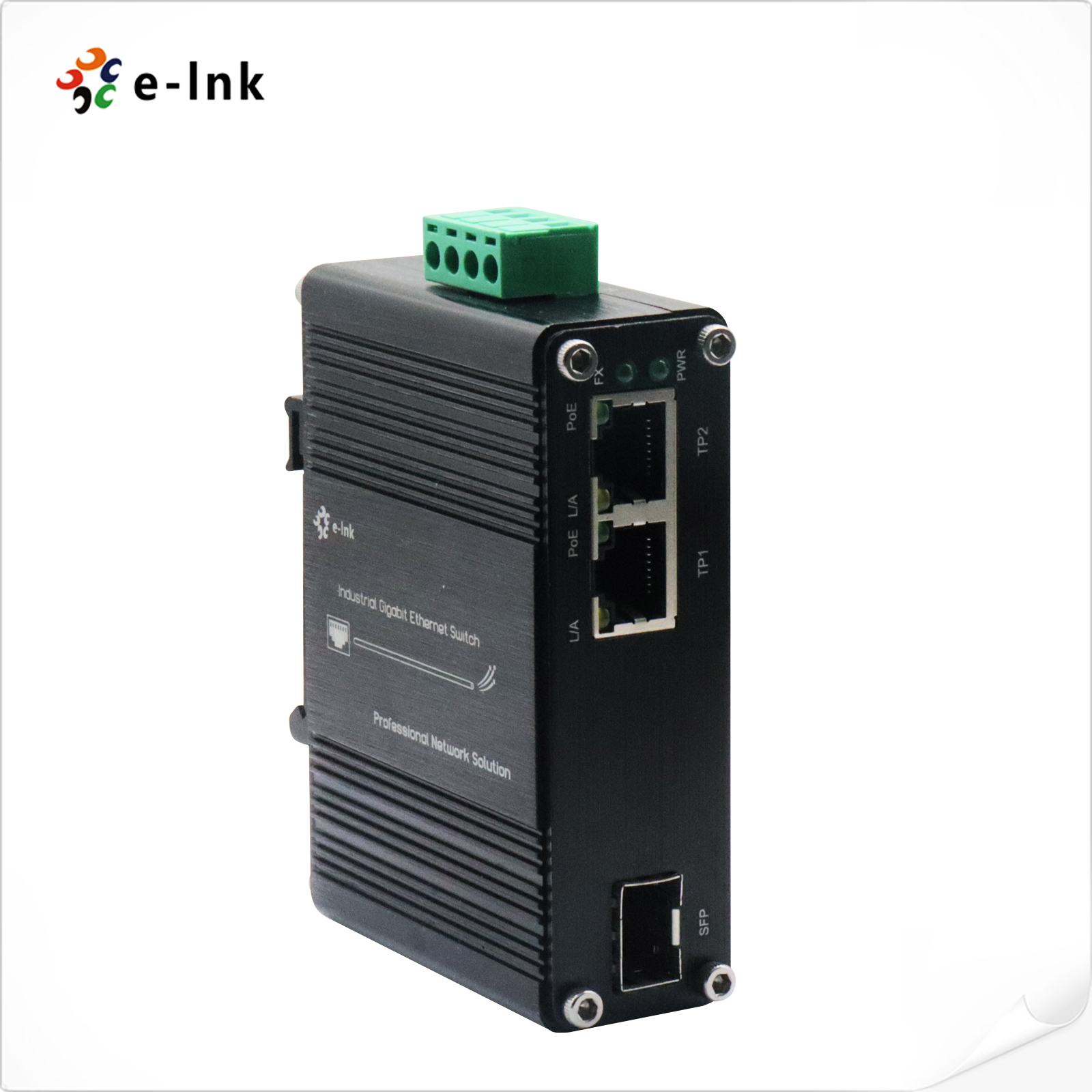

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

Name: Mini Industrial 1Port 1001000X SFP to 2Port 101001000T 90W PoE Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC1200GP90-SFP

Certification : ROHS,FCC,CE,ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail/Wall-mount

Dimensions (WxDxH) : 95 x 70 x 30 mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57VDC, 4-pin terminal block

Power Consumption : 185W Max

Optical Port : 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Contact Now

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

LNK-IMC1200GP90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.


Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

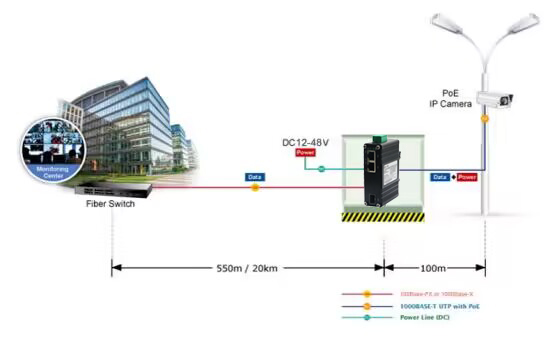

Application

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter

Ordering Information

Model	Description
LNK-IMC1200GP90-SFP	Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
