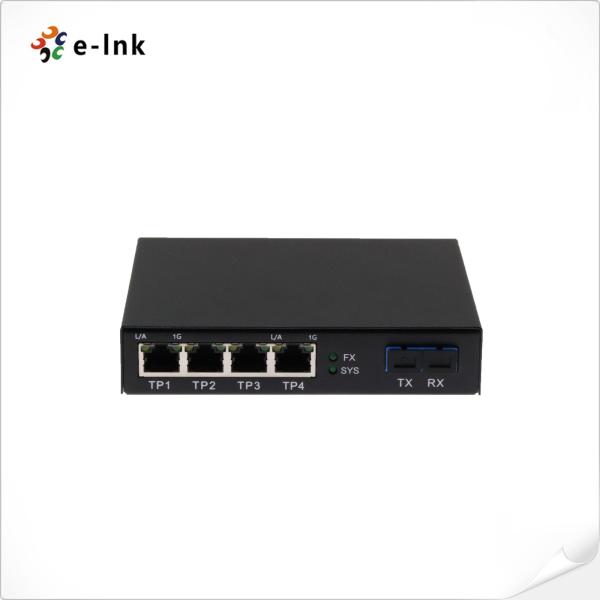

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

Name: LED Screen Fiber Converter with 1x10G SC Fiber Port 4 x 101001000M Ethernet RJ45 Ports
Brand: E-link
Price: 1 USD

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports Manufactures

Brand Name : E-link

Model Number : LNK-LED104G

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Fiber Converter Standard Export Package

Keywords : LED Screen Fiber Converter

Distance : Single mode fiber 10km

Resolution : 1920*1080@60Hz

Power Supply : Power input: 5-12V DC

Operating Temperature : 0℃ ~ 55℃;

Contact Now

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

LED Screen Fiber Converter Advantages

· 1 x 10G SC duplex optical port, single mode 10KM distance

· 4 x Gigabit Ethernet ports

· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

Not support VLAN

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports

LED Screen Fiber Converter Overview

The E-link LNK-LED104G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

LED Screen Fiber Converter Technical Indexes

Connector Type	1 x 10G SC duplex port 4 x Gigabit Ethernet RJ45 ports
Distance	Single mode fiber 10km
Resolution	1920*1080@60Hz
Compatible brand	NovaStar, Colorlight

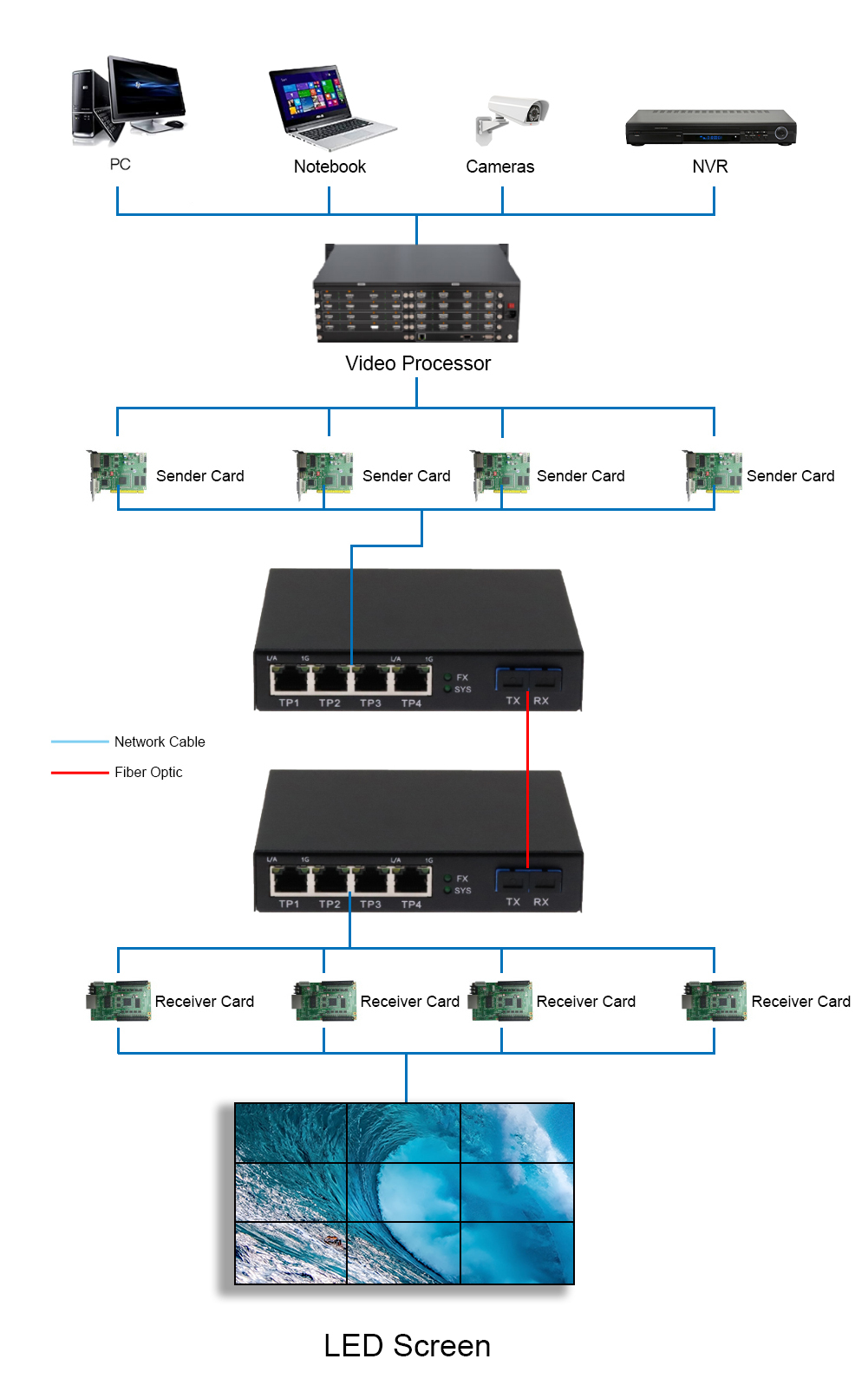

Connection method	Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1
Power Supply	Power input: 5-12V DC
Working Environment	Operating Temperature: 0℃ ~ 55℃; Storage Temperature: -40℃ ~ 75℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing
MTBF	100,000 hours
Dimensions	130 x 105 x 28mm
Weight	350g

LED Screen Fiber Converter Ordering Information

Model	Description
LNK-LED104G	LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km.

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports Images
