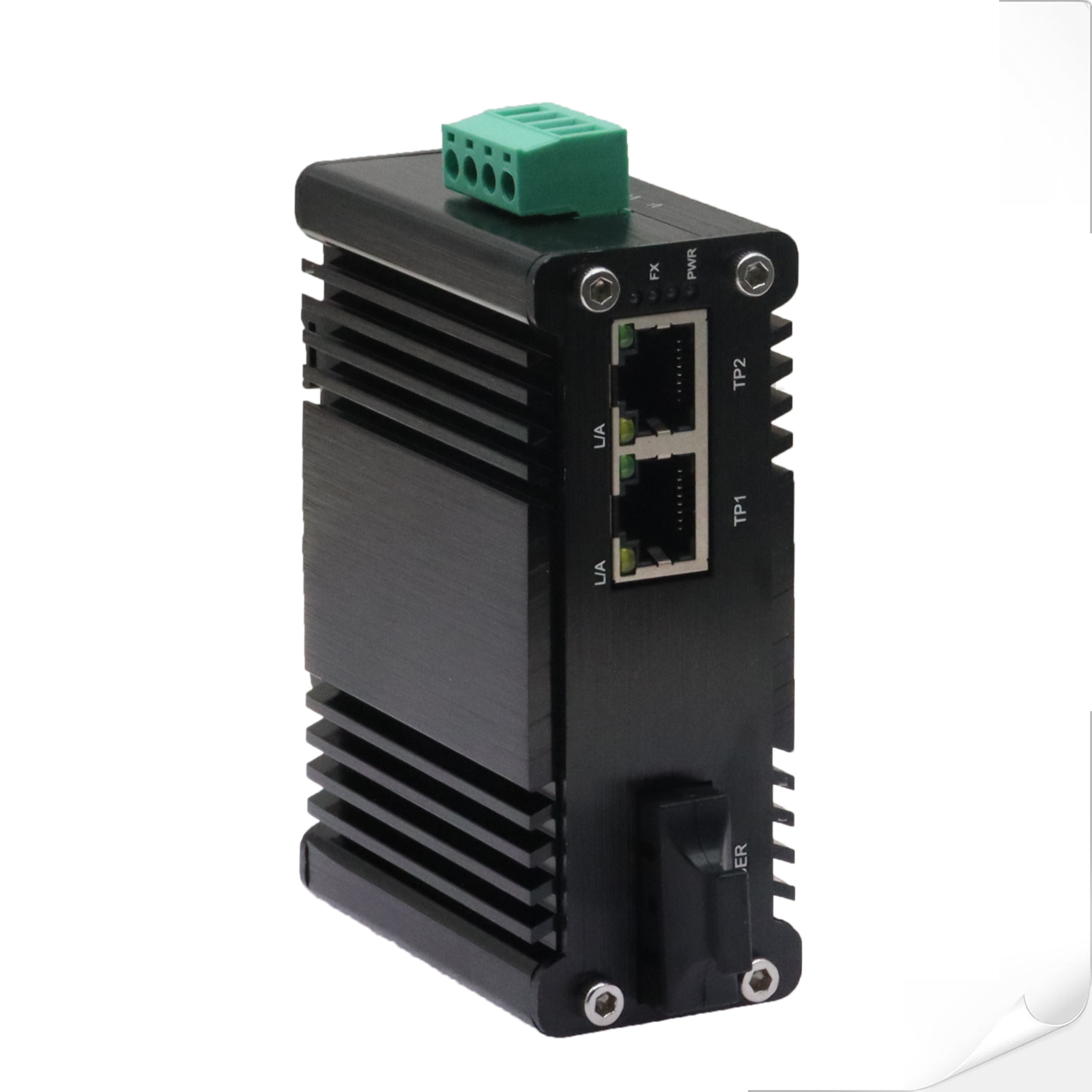

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter

Name: Mini Industrial 2Port 101001000BaseTX to 1000BaseX Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter Manufactures

Brand Name : E-link

Model Number : ZP-HIMC1200G Series

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 95 x 70x 36mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 2-pin terminal block

Casing : Aluminum Case

Contact Now

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter

Advantages

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The ZP-HIMC1200G Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions, and easy to mount on a DIN rail or in distribution boxes.


Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter

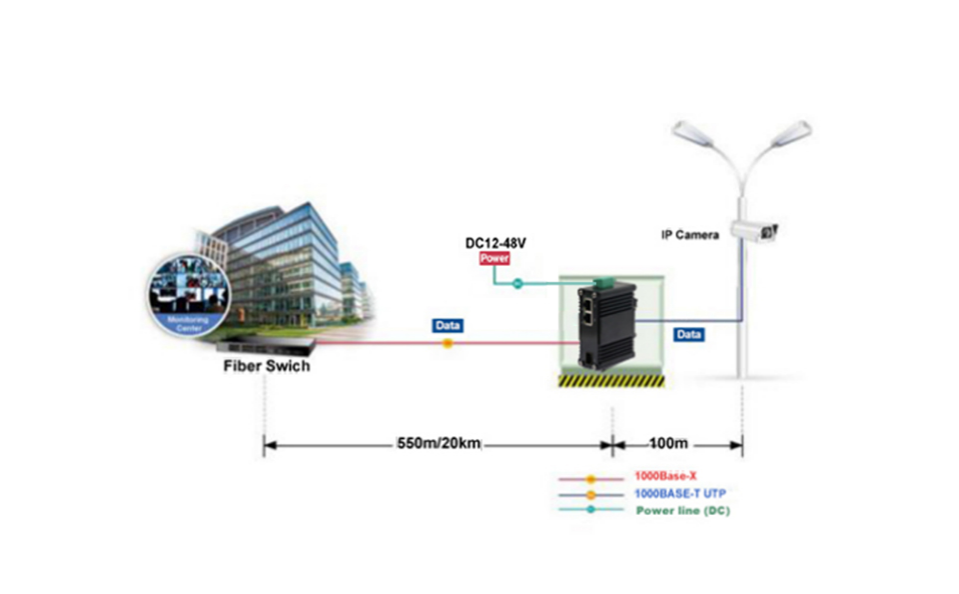

Application

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter

Ordering Information

Model	Description
ZP-HIMC1200G	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m
ZP-HIMC1200G-20	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
ZP-HIMC1200G-S20	Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
