Mini Industrial 10/100Base-T to 100Base-FX Media Converter
Supports Full/Half-duplex, Auto-negotiation
Media Converter Advantages
► 1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
► 1-Port 100Base-FX SC
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Extensive LED indicators for network diagnostics
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
Overview
The LNK-IMC1100 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized
aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged
hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions.
The LNK-IMC1100 Series are easy to mount on a DIN rail or in distribution boxes.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3x Full duplex and flow control |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 3W Max. |
| LED Indicators: |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| SPD: | Ethernet Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |

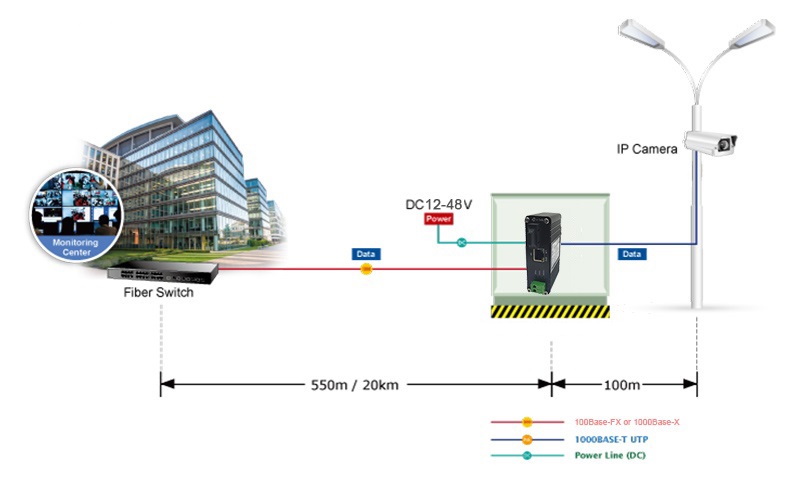

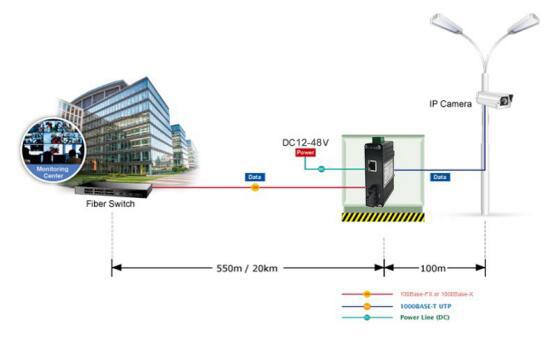

Application
Ordering Information
| Model | Description |
| LNK-IMC1100 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC |
| LNK-IMC1100-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC |
| LNK-IMC1100S-20 | Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
