10/100M Multi Mode Fiber Media Converter ST Connector

Name: 10100M Multi Mode Fiber Media Converter ST Connector
Brand: E-link
Price: 1 USD

10/100M Multi Mode Fiber Media Converter ST Connector Manufactures

Brand Name : E-link

Model Number : LNK-1100T

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : -10~55ºC

Wavelength : 850nm/1310nm/1550nm

Power consumption : <40W (the chassis at full load), <2W

Conversion means : Store and Forward mode or Cut-Through mode

Contact Now

10/100M Multi Mode Fiber Media Converter ST Connector

Product Advantages

► 10/100Mbps auto-sensed, facilitating network upgrade

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of 100Base-Fx or STM-1, compatible with other devices

► Supporting low-time lag transmission

► Supporting the transmission of extra-long packets up to1600 bytes

► Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime

Overview

The LNK-1100T 10/100M Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multi mode fiber backbone.

Technical Indexes

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength	1310nm
Optical Power	-15 ~ -8 dBm
Sensitivity	≤-35 dBm
Transmission distance	Dual-fiber multi-mode: 2 km; Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: ST (50, 62.5/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours
LED indicator	POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100 (fiber cable rate 100M)
Power supply	External: AC90~264V/DC100~380V input, 5V1A output
Power consumption	<40W (the chassis at full load), <2W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

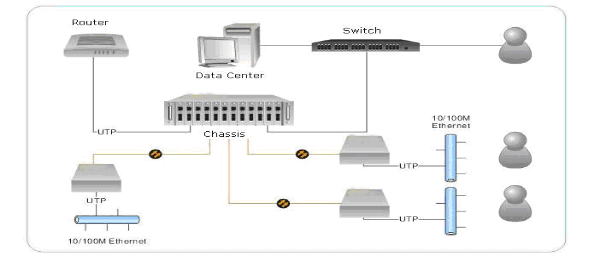

Application

Ordering Information

Item	Description

LNK-1100T	10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, ST, standalone, external power adaptor
LNK-1100T-20	10/100Base-T to 100Base-F, Single Mode, 20km, 1310nm, ST, standalone, external power adaptor
