Gigabit SFP to SFP Media Converter
Product Advantages
l Support 1.25G SFP Transceivers, Hot-plug
l Support full-duplex and half-duplex and its auto-sensed
l Support direct and transparent transmission of packets at different lengths
l Support the transmission of extra-long VLAN packets
l Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;
l Support STP to form a redundant network;
l Low power consumption, low heat, reliable and stable performance, and long lifetime;
l Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
Overview
E-link Gigabit SFP to SFP media converter has two SFP sockets. It can convert two optical digital signals of SFP modules, which have same speed, among different wavelength, different distance and different mode (single mode, multi mode, Fiber). It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber. It is used widely in popular applications in all kind of optical digital signals, like Ethernet signals, ATM signals, SDH signals, and control signals etc.
Technical Indexes
| Parameter | Specifications |
| Access mode | 1000Mbps (1250Mbpc) |
| Standard | IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40Km; single mode single fiber: 20/40Km |
| Port | One multi-mode optical port: Multi-mode: SFP (50, 62.5/125μm) One single mode optical port: single mode: SFP (9/125μm) Single mode Single fiber: SFP (9/125μm) |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply) LINK A (Multi-mode optical link) LINKB (Single-mode optical link) |
| Power supply | DC5V 1A |

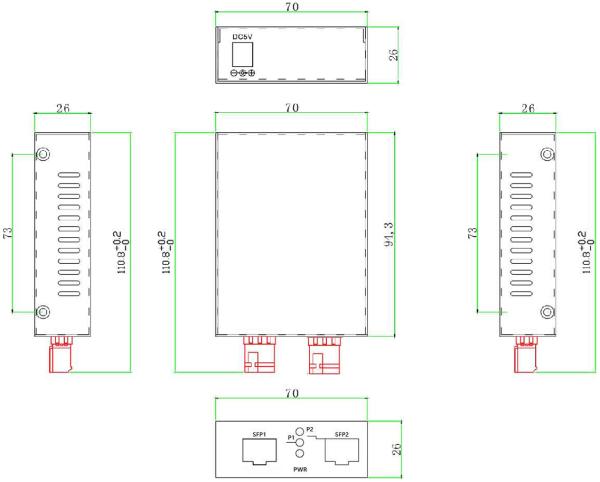

| Dimension (LxwxH) | 94x70x26mm |
| Power consumption | 3.5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |

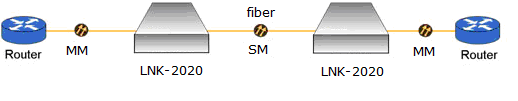

Application
Ordering Information
| Model | Description |
| LNK-2020SFP | Gigabit SFP to SFP Media converter not including SFP transceiver, standalone, external power adaptor |
Product Tags:
|
|
Gigabit SFP to SFP Media Converter Images
|
