10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot

Name: 10100M Fast Ethernet Media Converter with External Power Supply SFP Slot
Brand: E-link
Price: 1 USD

10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot Manufactures

Brand Name : E-link

Model Number : LNK-1100WSFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : -10~55ºC

Power consumption : 5W

Power supply : Internal: AC90~264V/DC100~380V input

Conversion means : Media conversion

Wavelength : 850nm/1310nm/1550nm

Contact Now

10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot

Product Advantages

► Supporting inter-conversion between adaptive 10Base-T/100Base-TX with 100Base-FX

► Use Port 10/100Base-TX (RJ45), 100Base-FX (SFP slot)

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of extra-long VLAN packets

► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;

Overview

LNK-1100WSFP is an Ethernet media converter that converts media transmission between UTP Copper cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies with IEEE802.3, IEEE802.3u and IEEE802.3x standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX, and 1000Base-FX, inter-converting electrical signals of 10Base-T/100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the transmission distance of network from 100m via copper cable to 120 km via fiber optical cables.

Technical Indexes

Parameter	Specifications
Access mode	10/100Mbps Fast Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 2KM
	single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Port	One optical port: SFP 3.3V
Conversion means	Media conversion
BER	<10-9
MTBF	100,000 hours
LED indicator	POWR (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply	External Power: AC90~264V/DC100~380V input, 5V1A output
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

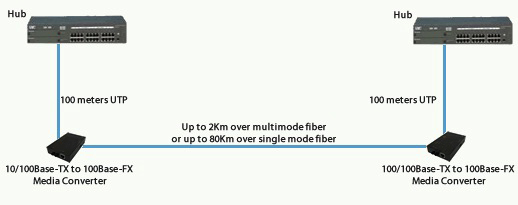

Application

10/100M Fast Ethernet Media Converter (with External Power Supply) SFP Slot

Ordering Information

Model	Description
LNK-1100WSFP	10/100Base-T to 100Base-F, SFP slot, excl. SFP module, standalone, external power adaptor
