Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO
Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO Advantages

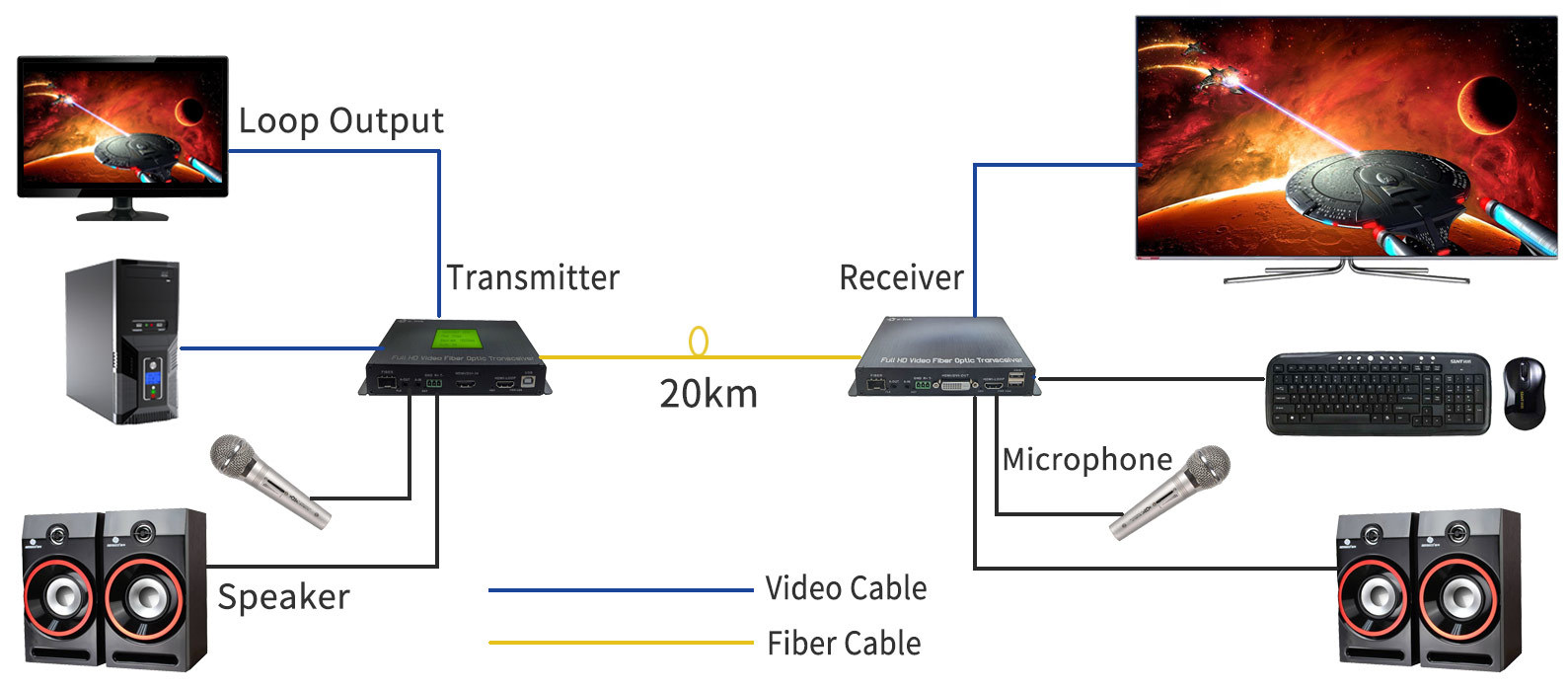

► Transmits HDMI video signals up to 20km over one fiber optic cable; Support HDMI loop out
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external bi-directional stereo audio;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Compliance with HDMI1.4 and HDCP 1.2 standard;
► Support 4U rack-mount
► Support cloud management: It can manage and monitor the working status of the equipment at remote end. The Management Platform can display the real-time information such as power supply, Fiber port,
Video format, EDID, audio, Rs232, Video input etc, and support Real-time alarm and recording.
Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO Overview
The LNK-KVM-HDMI-1D1BA1GO Series are cloud managed multi-function HD Video Fiber optic extender which provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
The LNK-KVM- HDMI-1D1BA1GO Series Support cloud management: It can manage and monitor the working status of the equipment at remote end. The Management Platform can display the real-time information such as power supply, Fiber port, Video format, EDID, audio, Rs232, Video input etc, and support Real-time alarm and recording. The system can locate the malfunction devices according to the information and alarm. The intelligent management can reduce the cost of maintenance and repair. It can offer cost-effective solution for customers.
Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO Technical Indexes
| Parameter | Description |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| | Maximum pixel clock | 165MHz |
| | Maximum data rate | 2.97Gbps |
| | Resolution | 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
| | Connector | HDMI |
| | Impedance | 100Ω |
| Audio | Interface | 3.5mm earphone seat |
| | Signal type | Stereo |
| K/M(Optional) | Interface | To PC: MINI-USB To keyboard and mouse: USB-A |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| | Signal direction | Unidirectional |
| | Baud rate | Self-adaptive, Max:115200bps |
| | Data bits | 8 |
| Optical fiber | Interface | LC connector |
| | Fiber type | Single-mode single fiber |
| | Wavelength | Single-mode 1310nm |
| | Interface bandwidth | 3Gbps |
| | Transmission distance | standard 10km |
| Management | Cloud management Management Platform | Manage and monitor working status of The devices. |
| Screen | OLED display | Display different information of Video, Audio, RS232, Fiber, Power etc |
Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIOOrdering information
| Model | Description |
| LNK-KVM-HDMI-1D1BA1GO | 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
| LNK-HDMI-1D1BA | 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM |
|
|
Cloud managed Multi-function HDMI Fiber Converter 1Ch 1080P HDMI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + GPIO Images
|
