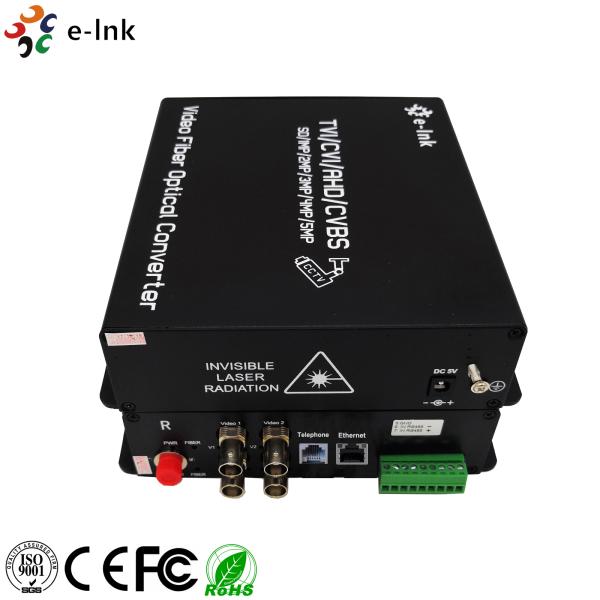

4-Ch 1080P HD Video + 1-Ch 10/100M Ethernet + 1-Ch FXO/FXS Telephone + 1-Ch Backward Data RS485 over Fiber Converter
Product Advantages
► Non-compression coding technology
► Automatically identify formats of input videos.
► Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously though fiber optical cable
► Support 2MP 1080P 720P Camera
► Through LED indicators to inform its functional mode
► Industrial wide range of operational temperature
► Plug and play, simple installation.
► Wide-range temperature application: -15ºC ~65ºC
Overview
E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI, HD-TVI or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. E-link 4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channels AHD, HD-CVI, HD-TVI or CVBS Video, 1-Ch 10/100M Ethernet, 1-Ch FXO/FXS Telephone and 1-Ch Backward Data RS485 over one single-mode optical fiber.
Technical Indexes
Optical Parameter
| Fiber Interface | ST |
| Wavelength | 1310/1550nm Optional |
| Transmission Distance | 20KM |
Video Parameter
| Number of Channels | 4 |
| Input/output impedance | 75 Ohm (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 50MHz |
| Sampling Bandwidth | 8bit |
| Sampling Frequency | 108MHz |
|  Signal to noise ratio
| >67dB |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
| Supporting video | 2MP 1080P Camera |
Data Parameter
| Physical Interface | Terminal Block of Industrial Standard |
| Data Type | RS485/RS422/RS232/Manchester |
| Data Rate | 0-400Kbps |
| Bit Error Rate | <10－9 |
Ethernet Parameter
| Work Mode | FDX/semi duplex |
| Interface | RJ45 |
| Protocol | IEEE 802.3, 10M, 10/100M Adaptive |
Telephone Parameter
| Interface | RJ11 |
| Voice Bandwidth | 8kHz |
| Description | FXO/FXS Ordinary telephone |
| Code | PCM Code |
| Connection | Point to point,
telephone to telephone, telephone to switch |
General Parameter
| Operating Temperature | -40℃~ +85℃ |
| Operating Humidity | 0-95%(non-condensing) |
| Operating Voltage | DC 5V/2A |
| Model | Details |
| LNK-4HV1E1P1D | Video Fiber Converter: 4-Ch 1080P AHD Video + 1-Ch 10/100M Ethernet + 1-Ch FXO/FXS Telephone + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, ST, including 1 transmitter & 1 receiver, used by pairs |
