Micro type Ethernet Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx
Model: LNK-M3011 series
Overview
The Micro type Ethernet Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-
Fx (LNK-M3011 series) is a high-performance network conversion device that leverages
advanced switching technology to achieve seamless media conversion. As a Micro type
Ethernet Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx, it strictly
complies with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring
stable and reliable operation in various network environments.
This Micro type Ethernet Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-
Fx supports two key types of media network connections: 10Base-T/100Base-TX/1000Base-
T and 100/1000Base-SX/LX. It efficiently inter-converts electrical signals from 10Base-T/100
Base-TX/1000Base-T twisted pairs with optical signals from 100/1000Base-SX/LX, breaking
through the distance limitations of traditional copper cable transmission. Specifically, it extends
the network transmission distance from 100 meters via copper cable to 20km (and up to 120km)
using fiber optic cables, greatly expanding the coverage of network systems.
What makes this Micro type Ethernet Media Converter with 10 / 100 / 1000Base-Tx to 100 /
1000Base-Fx stand out is its versatility in transmission modes, supporting multi-mode dual fiber,
single mode dual fiber, and single mode single fiber transmission. Additionally, its super mini size
allows for easy installation and integration into other equipment, saving valuable space in network
setups. The fiber port's support for both 100M and 1000M further enhances its compatibility, enabling
it to work seamlessly with a wider range of devices, making it an ideal choice for diverse network
expansion and conversion needs.
Features
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Micro type design
► USB-powered for portability, 5VDC power input
► Supporting full-duplex and half-duplex and its auto-sensed
► Support 9k jumbo frame
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port | 1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5V (Type-C) |
| Power consumption | 3W |
| Operating temperature | 0~45ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions (W x D x H) | 62 x 44 x 18 mm |
Order Information
| Model | Description |
|
| LNK-M3011 | Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor |
| LNK-M3011-20 | Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-M3011S-20A | Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor |
| LNK-M3011S-20B | Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor |

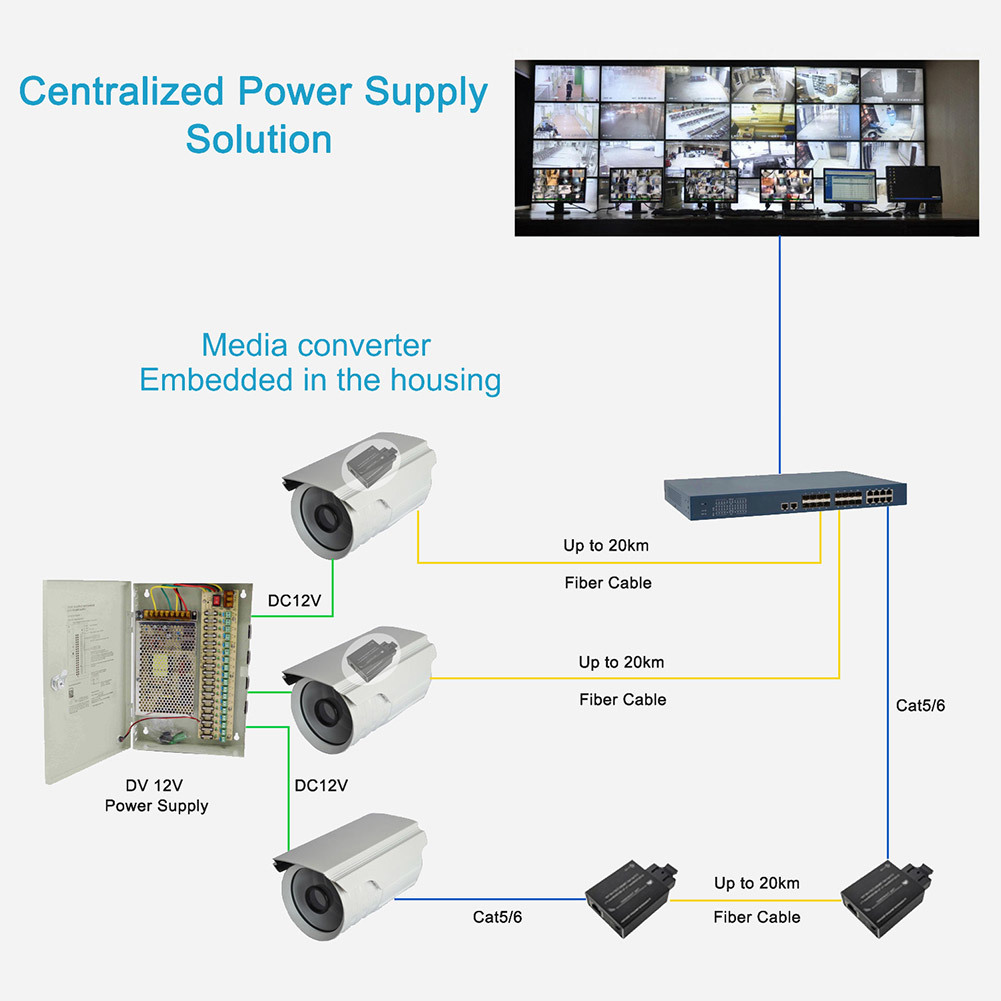

Application
