10Base-T to 10Base-FL Converter - 2km Fiber Industrial Grade Plug & Play
Product Overview
The E-link 10Base-T to 10Base-FL Media Converter enables seamless Ethernet connectivity between twisted pair (10Base-T) and fiber optic (10Base-FL) networks, compliant with IEEE 802.3 standards. Designed for industrial, enterprise, and telecom applications, this converter extends 10Mbps Ethernet signals up to 2km over multi-mode or single-mode fiber, eliminating electromagnetic interference (EMI) and ensuring stable, long-distance data transmission.
Key Features & Benefits
✅ Dual-Media Conversion
✅ Long-Distance & Secure Transmission
-
Up to 2km reach over fiber (loss budget: <11dB)
-
EMI/RFI immunity for noise-free performance
-
Galvanic isolation for surge protection
✅ Plug-and-Play Operation
-
Auto-negotiation for hassle-free setup
-
LED indicators (Power, Link, Activity)
-
Compact, rugged housing for space-saving deployment
✅ Wide Compatibility
✔ Legacy industrial Ethernet networks
✔ Building automation systems
✔ Remote surveillance (CCTV) setups
✔ SCADA/PLC communications
Technical Compliance
-
Standards: IEEE 802.3 (10Base-T/FL)
-
Certifications: CE, FCC, RoHS
-
Fiber Connectors: ST/SC (optional)
Technical Features
1. Intelligent Auto-Negotiation
-
Auto-MDI/MDIX for automatic cable polarity detection
-
Plug-and-play installation with no manual configuration
-
IEEE 802.3 compliant (10Base-T/10Base-FL standards)
2. Reliable Media Conversion
-
Converts UTP (RJ45) to fiber optic (10Base-FL)
-
Extends network reach up to 2km over multi-mode fiber (MMF)
-
EMI/RFI immune for noise-free transmission
3. Broad Compatibility
-
Works with 10Base-T NICs, hubs, and switches
-
Interoperable with other 10Base media converters
-
Supports ST, SC, and FC fiber connectors (flexible deployment)
4. User-Friendly Monitoring
-
LED status indicators (Power, Link, Activity)
-
Real-time network diagnostics
-
Compact, rugged housing for industrial use
5. Industrial-Grade Performance
-
Galvanic isolation for surge/ESD protection
-
Wide operating temperature range
-
DIN-rail or wall-mount options
Professional Application Scenarios
1. Industrial Automation Networks
-
Legacy PLC system upgrades in manufacturing facilities (IEC 61131-2 compliant)
-
Factory floor Ethernet extensions with EMI/RFI immunity
-
Process control system integration for oil/gas refineries
2. Building Automation Systems
-
HVAC control network expansions
-
Elevator monitoring system backbones
-
Smart lighting control networks
3. Transportation Infrastructure
-
Railway signaling systems (EN 50155 environments)
-
Tunnel safety monitoring networks
-
Airport baggage handling systems
4. Utility & Energy Management
-
Substation communication networks (IEC 61850-3)
-
Water treatment plant SCADA systems
-
Power grid monitoring installations
5. Security & Surveillance
-
Long-distance CCTV camera connections
-
Perimeter security system integrations
-
Access control network extensions
Technical Advantages:
✔ Reliable 10Mbps throughput for industrial control systems
✔ 2km fiber reach with multi-mode compatibility (OM1/OM2)
✔ Galvanic isolation (4KV) for surge protection
✔ Wide temperature operation (-40°C to +75°C industrial models)
Technical Indexs
| Parameter | Specifications |
| Access mode | 10Mbps |
| Standard | IEEE 802.3 10Base-T 10Base-FL |
| Wavelength | 850nm |
| Transmission distance | Dual-fiber multi-mode: 2 km; |
| Port | One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: ST (50, 62.5/125μm) |
| Conversion means | Store and Forward mode or Cut-Through mode |
| Buffer space | Built in 128Kb RAM for data buffer |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply); FL/Link (Fiber link action); TP/Link (Ethernet link action), FL/ACT (Fiber data transmission); TP/ACT (Ethernet data transmission), PLR(UTP connection) |
| Power supply | External: AC90~264V/DC100~380V input, 5V1A output |
| Power consumption | <40W (the chassis at full load), <2W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Orrdering Information
| Item | Description |
| | |
|  LNK-10FT
| 10Base-T to 10Base-F, Multi mode, 2km, 850nm, ST, standalone, external power adaptor |

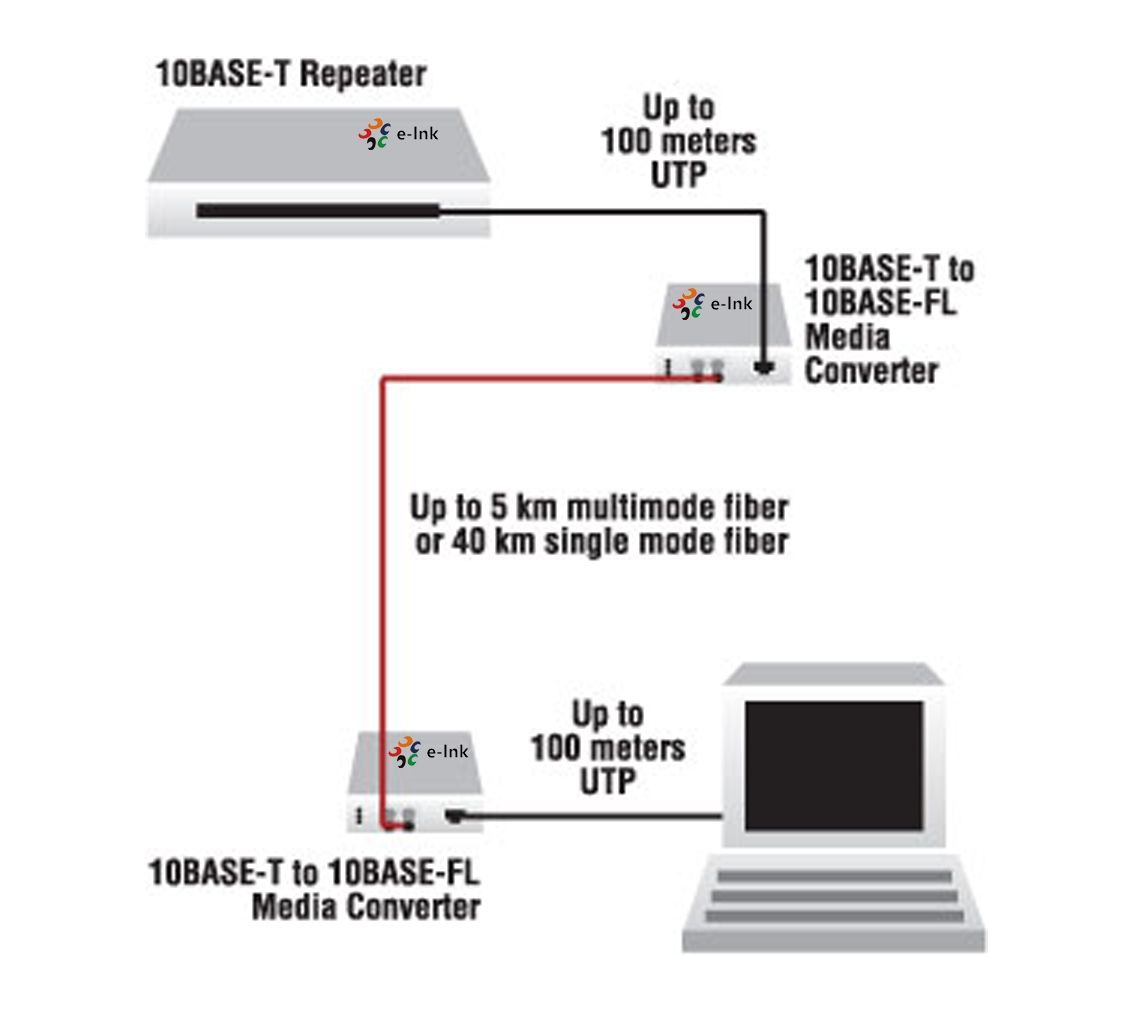

Display Diagram
