Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Speed

Twisted-pair:

　10/20Mbps for half/full duplex

　100/200Mbps for half/full duplex

　2000Mbps for full duplex

Fiber optic:

　200Mbps for full duplex

　2000Mbps for full duplex

Interface

Connector:

1 x 10/100/1000BASE-T Ethernet TP RJ45 port

Optical Port:

1 x 100/1000BASE-X SFP (LC) (auto detection)

PoE (Power over Ethernet)

Port:

RJ45

Electrical and Mechanical

Input Power:

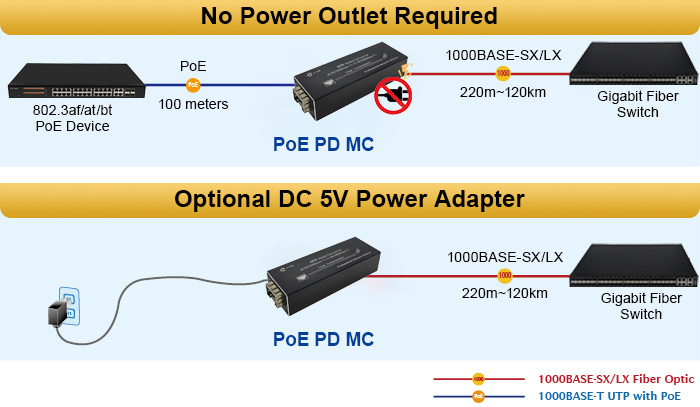

IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5~15V(Type-C) external power adapter(Not included in standard package)

Power Consumption:

DC 48V PoE In: 3.1 watts/10.5BTU

DC 54V PoE In: 3.2watts/10.9BTU

LED Indicators:

PWR:

Power Status

TX:

LINK100/1000, TP cable rate 100/1000M

FX/ACT:

Optical link action /TP cable packet forwarding action

Dimensions (WxDxH):

78 x 27 x 18 mm

Weight:

46g

Casing:

Aluminum Case

Mounting Options:

Desktop

Environmental

Operating Temperature:

-20°C to 70°C (-4°F to 158°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 100,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS
