Wall-Mounted 10/100/100Mbps Gigabit PoE-PSE Fiber Media Converter

Name: WallMounted 10100100Mbps Gigabit PoEPSE Fiber Media Converter
Brand: E-link
Price: 1 USD

Wall-Mounted 10/100/100Mbps Gigabit PoE-PSE Fiber Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-PW001G

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : 0~50ºC (Operating); -20~70ºC (Storage)

Mounting Options : Desktop

Dimensions (WxDxH) : 88x49x21mm

Power : DC48V, 1.25A

Contact Now

Wall-Mounted 10/100/100Mbps Gigabit PoE-PSE Fiber Media Converter

Product Advantages

► 10/100/1000Base-TX to 1000Base-X Fiber

► Fiber to copper Ethernet converter and PoE injector all in one device

► Extend network distances up to 120km

► Supply PSE power to PoE and PoE+ compliant devices

► IEEE 802.3af and IEEE802.3at compliant

► Provide 15.4 to 30 Watts of PoE power

► IEEE802.3af with max. Power 15.4 W, IEEE802.3at with max. Power 30W

► Support Wall-mounted Installation

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3i 10Base-T;
	IEEE802.3u 100Base-TX;
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3z 1000BASE-SX
	IEEE802.3x Flow Control;
	IEEE802.3af/at Power over Ethernet
Fiber Type	Multi-mode (MM): 50/125μm, 62.5/125μm
Fiber Type	Single mode (SM): 9/125μm
Distance	Multi-mode: 220m (62.5/125μm)/550m (50/125μm)
	Single mode: 20/40/60/80/120 Km
	Single fiber single mode: 20/40/60/80/100 km
	Category-5 twisted pairs: 100m
Date Rate	10/100/1000Mpbs
Connector	RJ45, SC
Wavelength	1310nm, 1550nm
Diagnostic LED	Power, Link/Activity
Power	DC48V, 1.25A
Power Consumption	<3W
Temperature	0~50ºC (Operating); -20~70ºC (Storage)
Humidity	5% ~ 90% non-condensing
Dimension	88x49x21mm

Overview

E-link LNK-PW001G series wall-mounted media converters are 10/100/1000BaseT/TX to 1000BaseFX Power over Ethernet (PoE) devices that serve as Power Sourcing Equipment (PSE),which allows the converter to provide power to IEEE802.3af /at PoE standard-compliant Powered Devices (PDs) using the twisted pair connection.

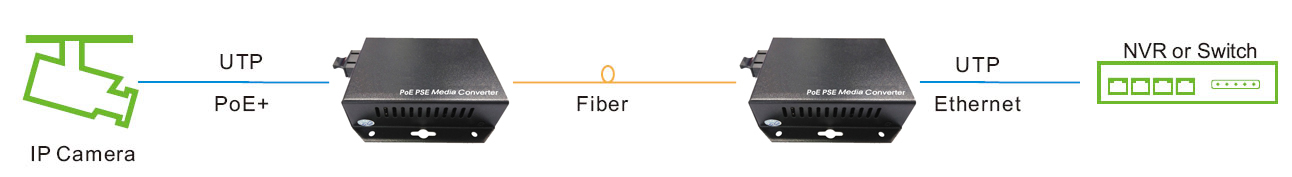

Application

Wall-Mounted 10/100/100Mbps Gigabit PoE-PSE Fiber Media Converter

Ordering Information

Model	Description
LNK-PW001G	1xRJ45, 1xSC, 10/100/1000Mbps, IEEE802.3af, POE power: 15.4W, MM Dual Fiber, 2KM
LNK-PW001G-20	1xRJ45, 1xSC, 10/100/1000Mbps, IEEE802.3af, POE power: 15.4W, SM Dual Fiber, 20KM
LNK-PW001GT	1xRJ45, 1xSC, 10/100/1000Mbps, IEEE802.3at, POE+ power: 25.5W, MM Dual Fiber, 2KM
LNK-PW00GT-20	1xRJ45, 1xSC, 10/100/1000Mbps, IEEE802.3at, POE+ power: 25.5W, SM Dual Fiber, 20KM

Wall-Mounted 10/100/100Mbps Gigabit PoE-PSE Fiber Media Converter Images
