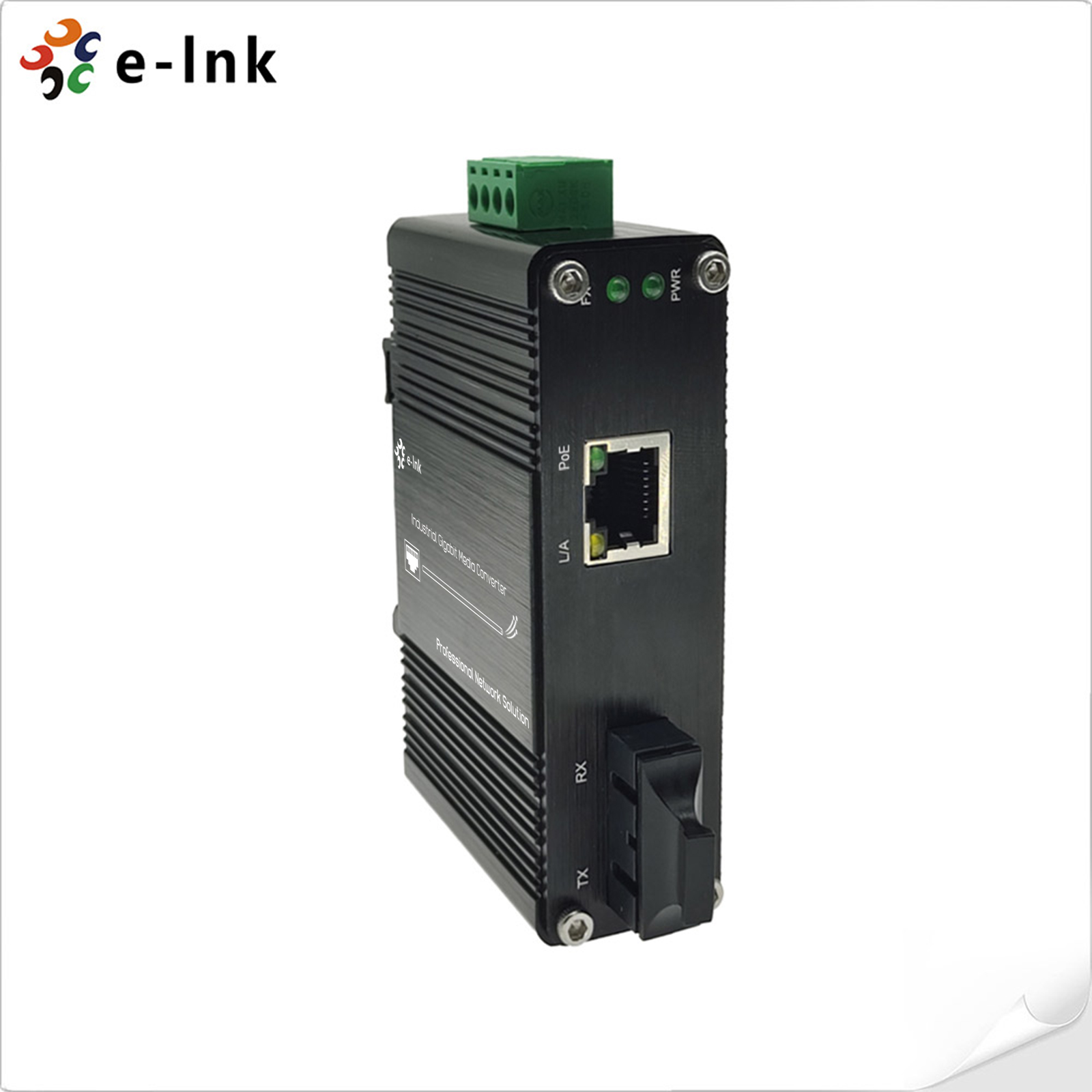

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

Brand Name : E-link

Model Number : LNK-IMC3011P90 Series

Certification : ROHS,FCC,CE,ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail/Wall-mount

Dimensions (WxDxH) : 95 x 70 x 30 mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57VDC, 4-pin terminal block

Power Consumption : 95W Max

Optical Port : 1 x 1000Base-X SC

Contact Now

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter


Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature



Overview

The LNK-IMC3011P90 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P90 Series is easy to mount on a DIN rail or in distribution boxes.



Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter

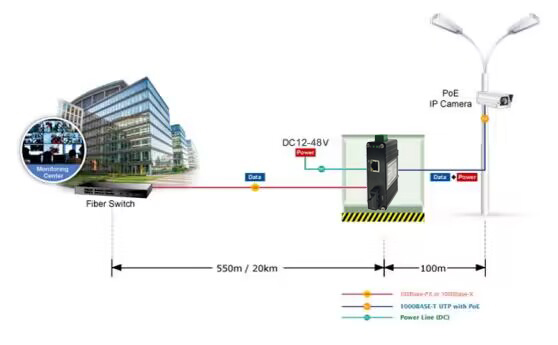

Application

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 90W PoE++ Media Converter



Ordering Information

Model

Description

LNK-IMC3011P90

Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC3011P90-20

Mini Industrial 90W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC3011P90S-20

Mini Industrial 90PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
