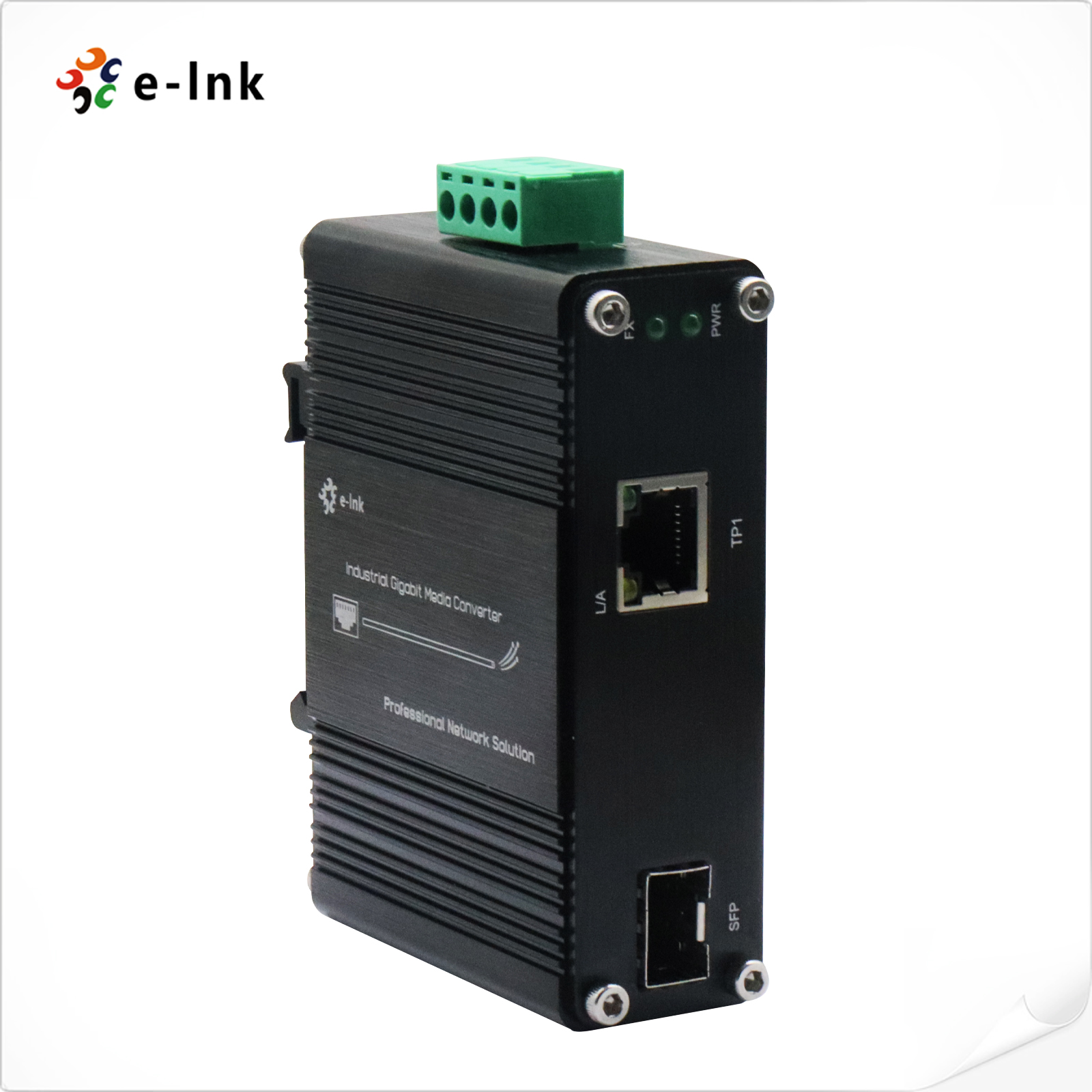

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter

Name: Mini Industrial 101001000BaseT to 1001000BaseX SFP Ethernet Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC3012-SFP

Certification : ROHS,FCC,CE,ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail/Wall-mount

Dimensions (WxDxH) : 95 x 70 x 30 mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 4-pin terminal block

Power Consumption : 3W Max

Optical Port : 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Contact Now

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter

Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

LNK-IMC3012-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.


Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter

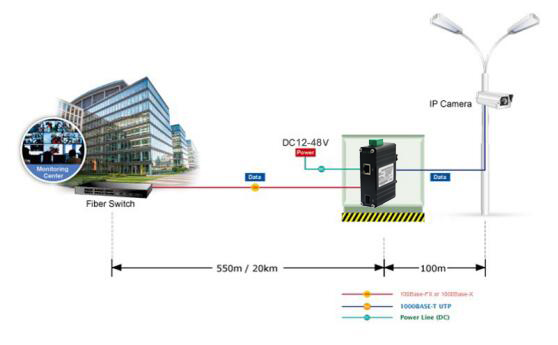

Application

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter

Ordering Information

Model	Description
LNK-IMC3012-SFP	Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Mini Industrial 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Media Converter Images
