Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Name: Mini Industrial 101001000BaseT to 1000BaseX Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC3012 Series

Certification : ROHS,FCC,CE,ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail/Wall-mount

Dimensions (WxDxH) : 95 x 70 x 30 mm

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 4-pin terminal block k

Power Consumption : 3W Max

Optical Port : 1 x SC 1000Base-X

Contact Now

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 1000Base-X

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3012 Series are easy to mount on a DIN rail or in distribution boxes. This media converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.


Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

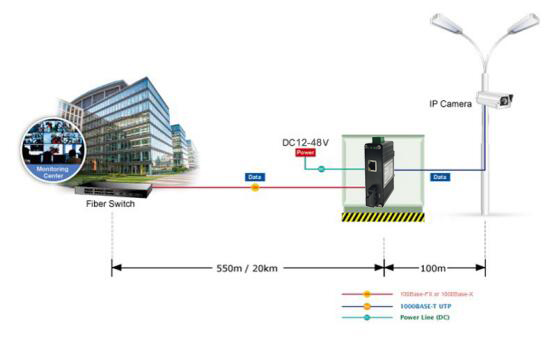

Application

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Ordering Information

Model	Description
LNK-IMC3012	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC
LNK-IMC3012-20	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC
LNK-IMC3012-S20	Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter Images
