Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Name: Mini Industrial 10100BaseT to 100BaseFX Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 10/100Base-T to 100Base-FX Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC1100

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Converter Standard Export Package

Keywords : Industrial Media Converter

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

MTBF : > 200,000 hrs

Weight : 0.25KG

Dimensions (WxDxH) : 95 x 70 x 30 mm

Power Consumption : 3W Max

Contact Now

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Mini Industrial 10/100Base-T to 100Base-FX Media Converter Advantages

► 1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

► 1-Port 100Base-FX SC

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 10/100Base-T to 100Base-FX Media Converter Overview

The LNK-IMC1100 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100 Series are easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 10/100Base-T to 100Base-FX Media Converter Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	3W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 10/100Base-T to 100Base-FX Media Converter ordering information

Model	Description
LNK-IMC1100	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

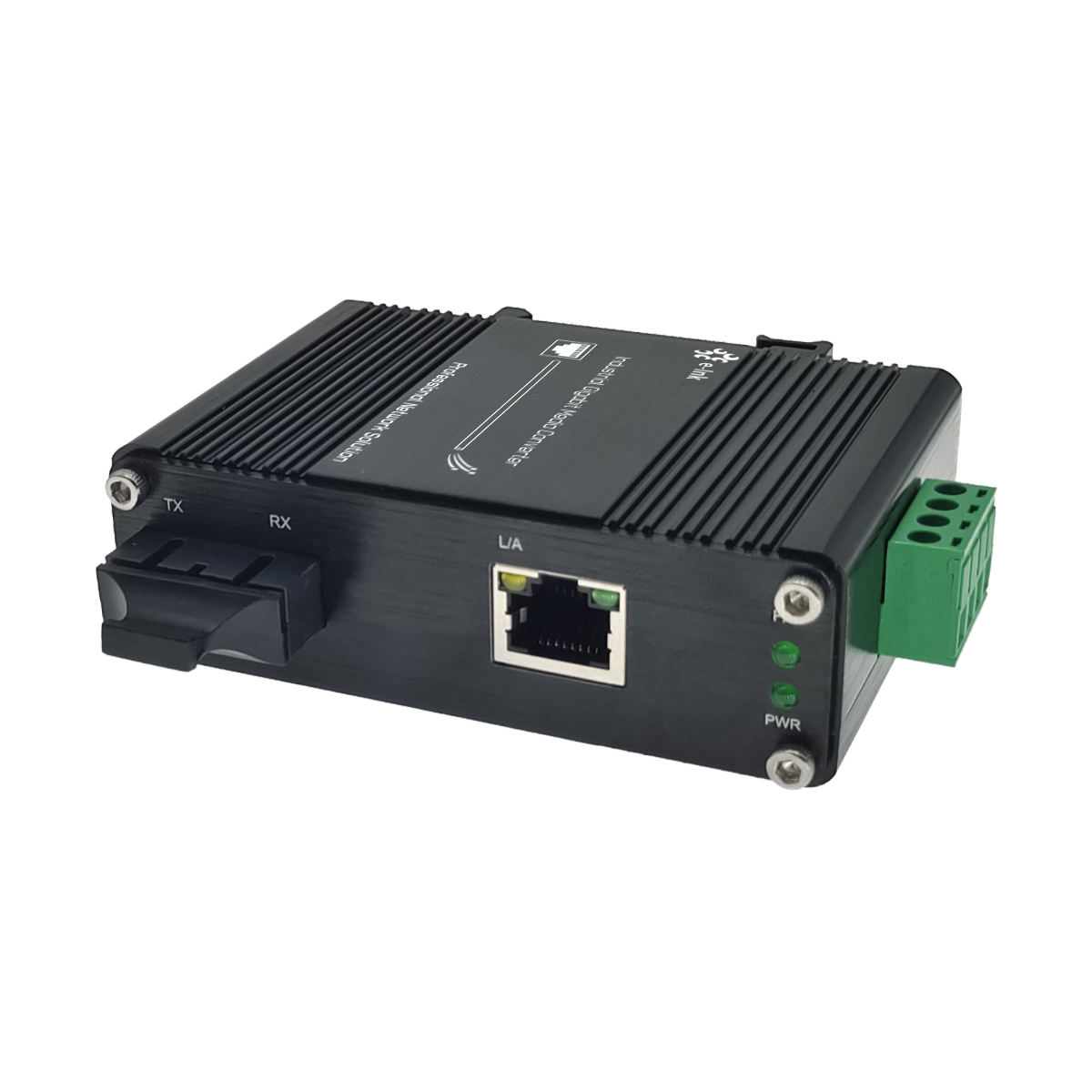

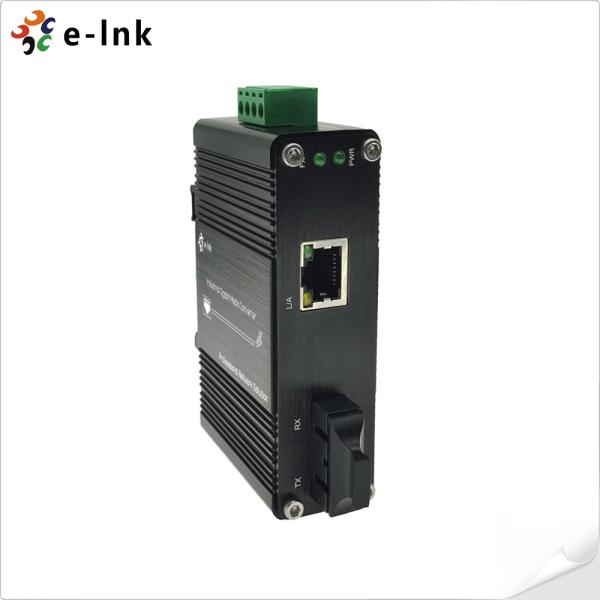

Mini Industrial 10/100Base-T to 100Base-FX Media Converter Images
