Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Advantages
► Auto-MDI/MDIX
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
(-40°F to 167°F) operating temperature
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Overview
E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical media converter converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber optic cable up to 20,000 meters.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC10FST Series are easy to mount on a DIN rail or in distribution boxes.
Connect 10 Mbps Ethernet segments to fiber segments without using crossover cables. With a E-link 10Mbps Media Converter, you no longer have to deal with mismatched transmit and receive cable pairs. This converter contains a switch that senses the type of circuit connected to the UTP port and automatically configures the port to match. Because the UTP side is autosensing to MDI/MDI-X, you can use either a straight or crossed cable to connect a switch or NIC.
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 |
| | 10 Base-T |
| | 10 Base-FL |
| | IEEE 802.3az Energy Efficient Ethernet (EEE) |
| | IEEE802.3x Full duplex and flow control |
| Conversion Means: | Store and Forward mode or Cut-Through mode |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| Wavelength: | 850nm |
| Buffer Space: | Built in 128Kb RAM for data buffer |
| Flow Control: | Full duplex: flow control; Half duplex: back pressure |
| Cable Length: | 50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
| Transmission type: | Base band |
| Connection switch: | 2-position 10Base-T switch on RJ-45 side (hub or W/S) |
| Interface |
| Connector: | 1x RJ45 10Base-T |
| Optical Port: | 1 x ST 10Base-FL |
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter ordering information
| Model | Description |
| LNK-IMC10FST-MM | Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
|
|

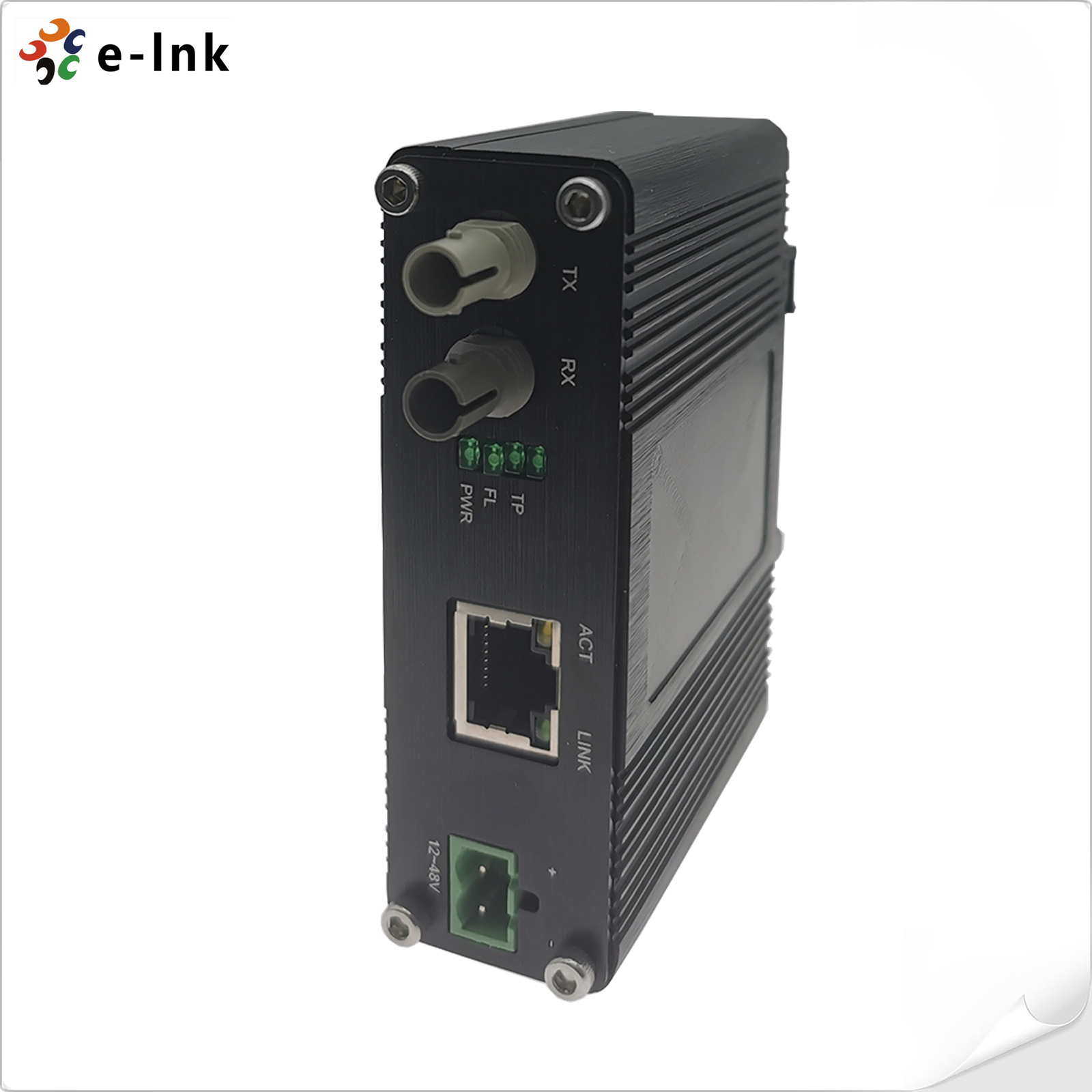

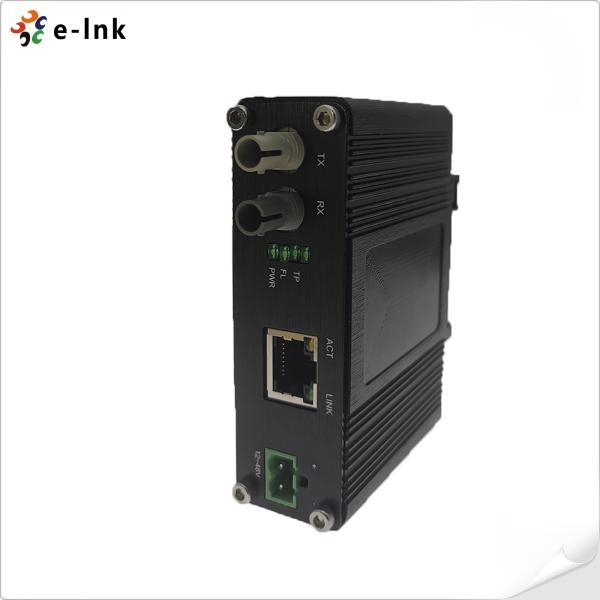

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter Images
|
