Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter

Brand Name : E-link

Model Number : LNK-IMC3011P60

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Converter Standard Export Package

Keywords : Industrial Media Converter

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

MTBF : > 200,000 hrs

Weight : 0.25KG

Dimensions (WxDxH) : 95 x 70 x 30 mm

Power Consumption : 65W Max

Contact Now

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Overview

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC3011P60 Series is easy to mount on a DIN rail or in distribution boxes.

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2048K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x 1000Base-X SC

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter ordering information

Model

Description

LNK-IMC3011P60

Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC3011P60-20

Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC3011P60S-20

Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter



















Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Manufactures

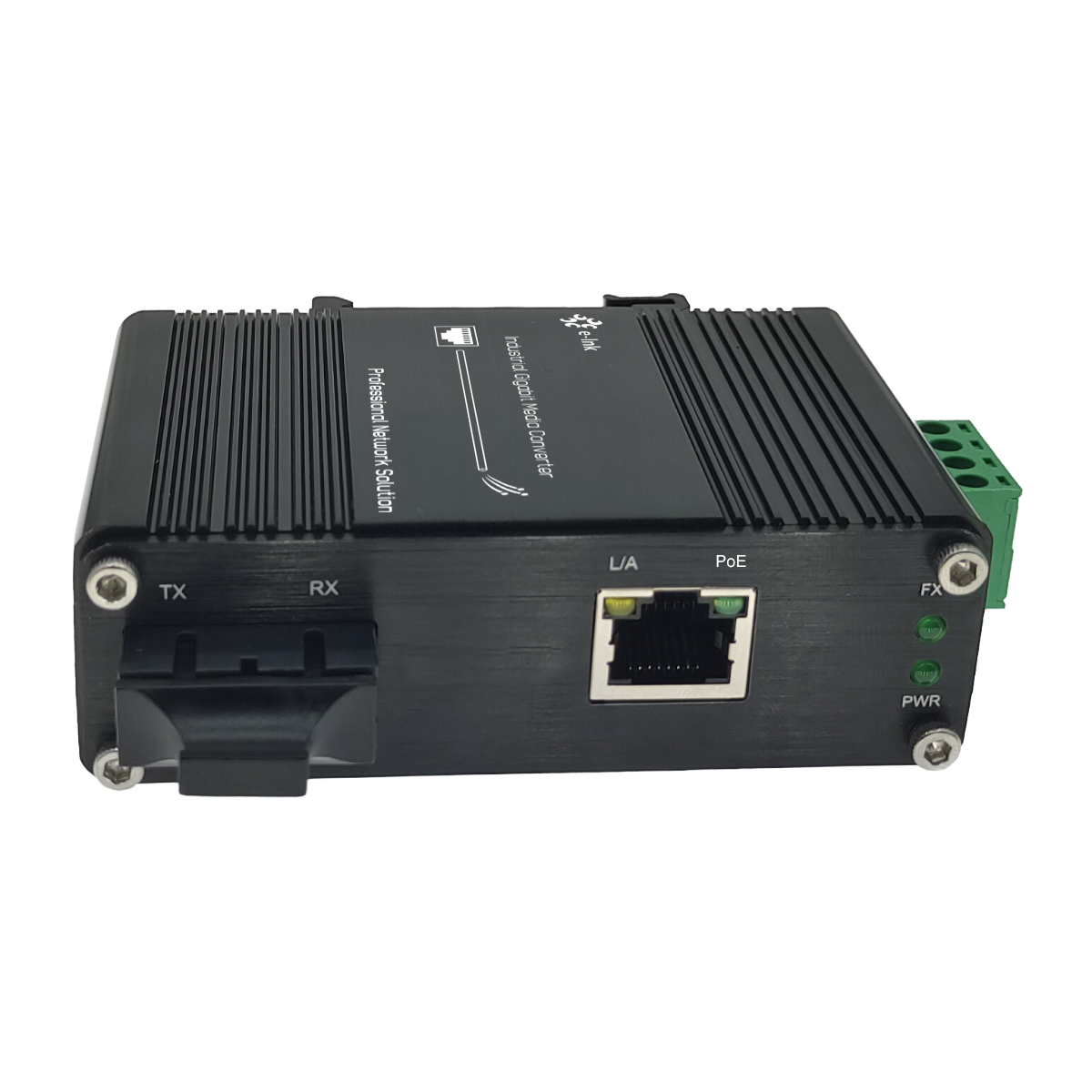

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter Images
