Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter

Brand Name : E-link

Model Number : LNK-IMC10GP95-SFP+

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Converter Standard Export Package

Keywords : Industrial Media Converter

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

MTBF : > 200,000 hrs

Weight : 0.25KG

Dimensions (WxDxH) : 95 x 70 x 30 mm

Power Consumption : 35W Max

Contact Now

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Advantages

► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface

► Compliant with IEEE802.3af/at/bt protocol

► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode

► Extensive LED indicators for network diagnostics

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Overview

LNK-IMC10GP95-SFP+ is Industrial-grade 10G 802.3bt PoE Media Converter providing non-blocking wire-speed performance and great flexibility for 10Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10GP95-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40℃ to 80℃.

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Technical Indexes

Ethernet

PoE Standard

IEEE802.3af/at/bt

Forward & Filtering Rate:

100Mbps

1000Mbps

2.5Gbps

5Gbps

10Gbps

Network Cables:

10G/5G/2.5G/1G/100M BASE-T:

　10G – Cat 6A/7

　5G – Cat 6/6A/7

　1G/2.5G – Cat 5e/6/6A/7

100M – Cat 5/5e/6/6A/7

　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)

　EIA/TIA-568 100-ohm STP (100 meters, max.)

10GBASE-LR/SR/BX:

　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m

　9/125μm single-mode fiber optic cable, up to 80km

Processing Type:

Store-and-Forward

Fabric:

20Gbps

Jumbo Frame:

16K

Address Table:

9K entries, automatic source address learning and aging

Interface

Connector:

1 x RJ45

Optical Port:

1 x SFP+


Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converterordering information

Model

Description

LNK-IMC10GP95-SFP+

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter

SFP Options

► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).

► SFP+ module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately.

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter














Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Manufactures

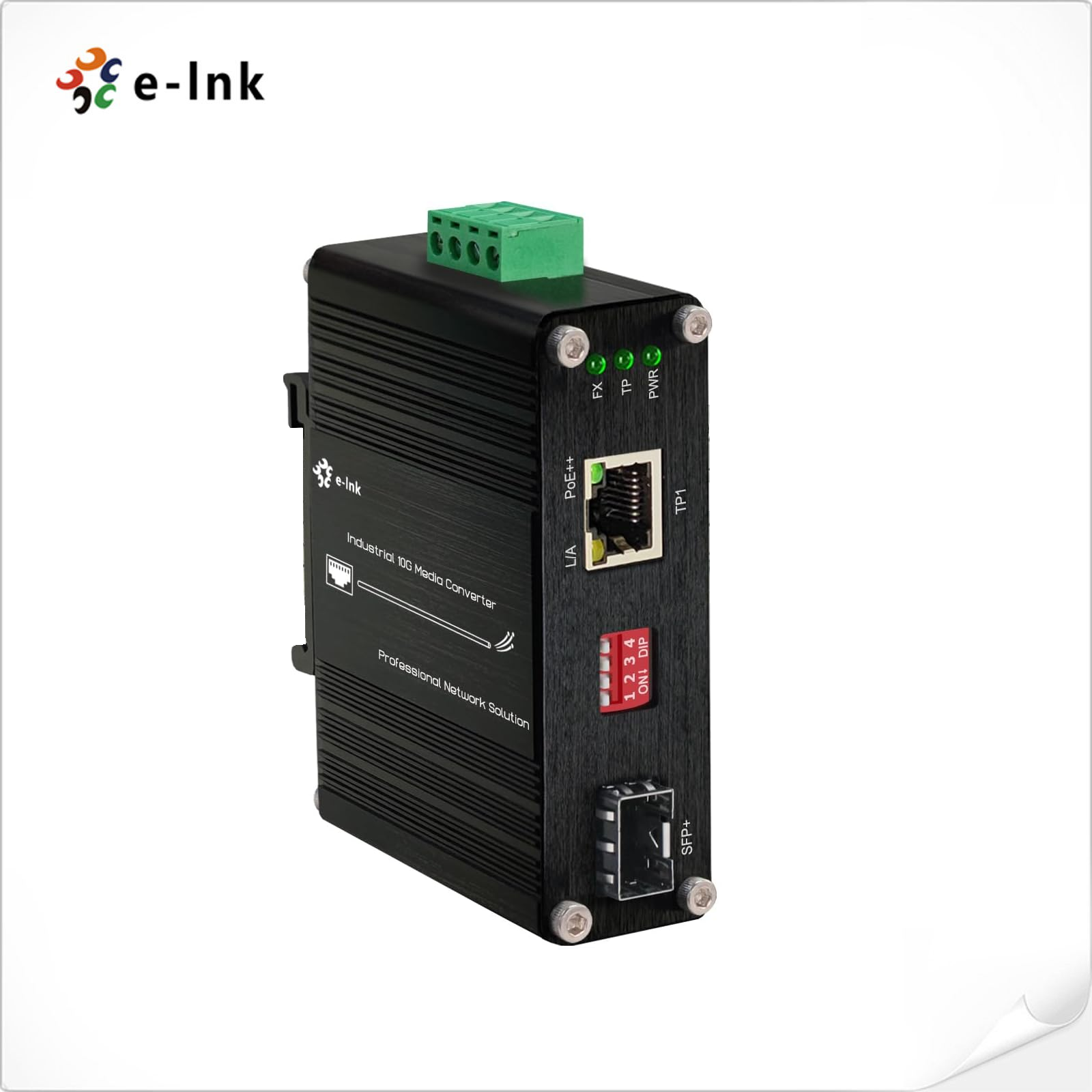

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Images
