1000M Ring Type Fiber Media Converter
Product Advantages
l Provide two 10/100M/1000M fiber ports, three 10/100/1000M RJ45 ports
l Support Gigabit fiber Hi per-Ring network
l Support 128 ring network nodes
l Support redundant ring network protection (switching time<50ms, RSTP/STP
l Support WEB management, RSR (Rapid Super Ring)
l Working temperature is -10℃～70℃
l Supporting multiple types of fiber ports, such as dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users
Overview
E-link LNK-R2300G series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.
Technical Indexes
| Parameters | Specifications |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs : 100m |
| Port | 3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) |
| Conversion Mode | Medium conversion |
| Delay | <10us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action) |
| Power | DC 12V |
| Power consumption | 5W |
| Operating temperature | -10~55℃ |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70℃ |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(H)*96mm(W)*120mm(D)/ (height * width * depth) (external power) |
Application
Product Tags:
|
|

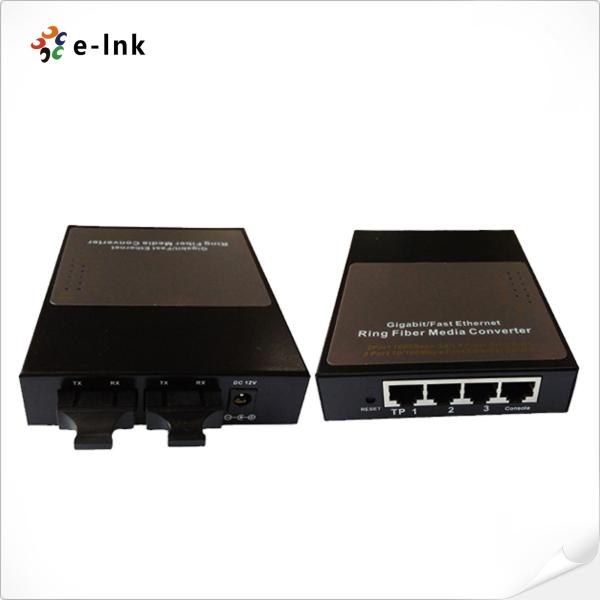

1000M Ring Type Fiber Media Converter Images
|
