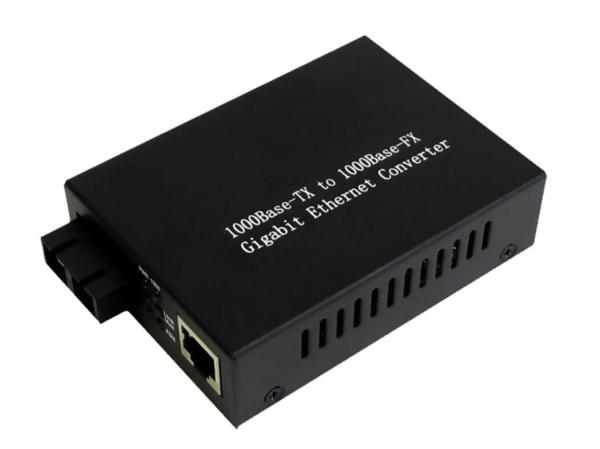

1000M Gigabit Ethernet Media Converter

Name: 1000M Gigabit Ethernet Media Converter
Brand: E-link
Price: 1 USD

1000M Gigabit Ethernet Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-2100

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimension : 70mm (W) * 95mm (D)*26 mm (H) (external power supply)

Operating Temperature : -10~55℃

Conversion means : Media conversion/Pass-through mode

Power consumption : 5W

Contact Now

1000M Gigabit Ethernet Media Converter

Product Advantages

l Support inter-conversion between1000Base-T and 1000Base-SX/LX

l 1000M media converter with SFP slot is available

l Support full-duplex and half-duplex and its auto-sensed

l Support auto-sense of MDI/MDI-Facilitating system commissioning and installation

l Support the transmission of extra-long VLAN packets

l Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;

l Options in Multi mode dual fiber, single mode dual fiber and single mode single fiber

Overview

LNK-2100 1000Mbps gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 1000Base-T and 1000Base-SX/LX.

Technical Indexes

Parameter	Specifications
Access mode	1000Mbps Gigabit Ethernet
Standard	IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)
Conversion means	Media conversion/Pass-through mode
BER	<10-9
MTBF	100,000 hours
LED indicator	PWR: Power FX: Fiber port signal detect FX-LINK/ACT: Fiber port link/action status 1000M: UTP port speed 1000M TX-LINK/ACT: UTP port link/action status FDX/COL: UTP port duplex
Power	External: AC90~264V/DC100~380V input, 5V2A output
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	70mm (W) * 95mm (D)*26 mm (H) (external power supply)

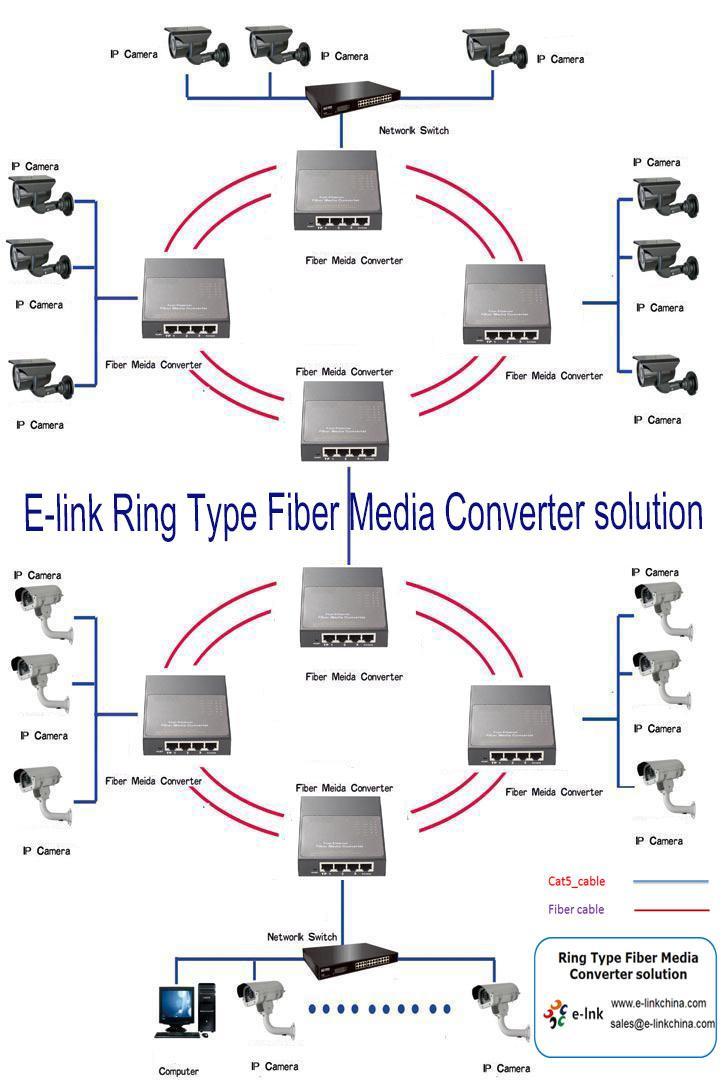

Application

1000M Gigabit Ethernet Media Converter
