10/100/1000Mbps Gigabit Ethernet Media Converter with SFP

Name: 101001000Mbps Gigabit Ethernet Media Converter with SFP
Brand: E-link
Price: 1 USD

10/100/1000Mbps Gigabit Ethernet Media Converter with SFP Manufactures

Brand Name : E-link

Model Number : LNK-3011WSFP

Certification : ISO9001 / CE / RoHS / FCC

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 1-3working days

Packaging Details : Fiber Media Converter Standard Carton Packaging

Access mode : 10/100/1000Mbps Gigabit Ethernet

Wavelength : 850nm/1310nm/1550nm

Power supply : DC 5~12V

Power consumption : <5W

Transmission distance : single mode Single fiber: 20/40/60/80 Km

Operating temperature : 0~50ºC

Contact Now

10/100/1000Mbps Gigabit Ethernet Media Converter

Fiber Media Converter Advantages:

Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
Supporting full-duplex and half-duplex and its auto-sensed
Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Options in single mode dual fiber, multi-mode dual fiber, and single mode in
single fibe

Overview

LNK-3011WSFP is an Ethernet media converter that converts media transmission
between UTP Copper cablings and fiber SFP (Small Form-Factor Pluggable)
Transceivers. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and
IEEE802.3ab standards. Presently it supports two types of media network
connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX,
inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs
with optical signals of 1000Base-SX/LX. It extends the transmission distance of
network from 100m via copper cable to 120 km via fiber optical cables.

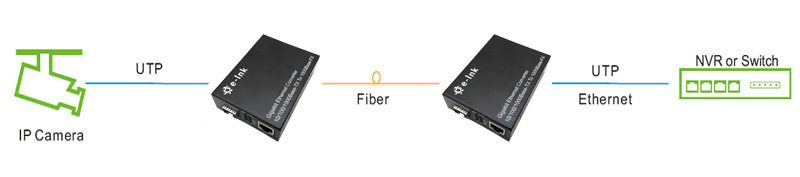

Application

10/100/1000Mbps Gigabit Ethernet Media Converter with SFP

Technical Indexs

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
BER	<10^-9
MTBF	100,000 hours
LED indicator	POWER (power supply), FX LINK (optical link action), FX (Optical data transfer ), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP Link/ACT (TP cable packet forwarding action)
Power supply	DC 5~12V
Power consumption	<5W
Operating temperature	0~50ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Application

1. Application Fields

For intranet prepared for expansion from 10M to 100M/1000M
For integrated data network for multimedia such as image, voice and etc.
For point-to-point computer data transmission
For computer data transmission network in a wide range of business application
For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

2. Application Industries
Intelligent transport monitoring system, safety and security monitoring system, campus network,
industrial monitoring (electric power, chemical industry, steel, oil, railway and water
conservancy etc.); CCTV monitoring system;
