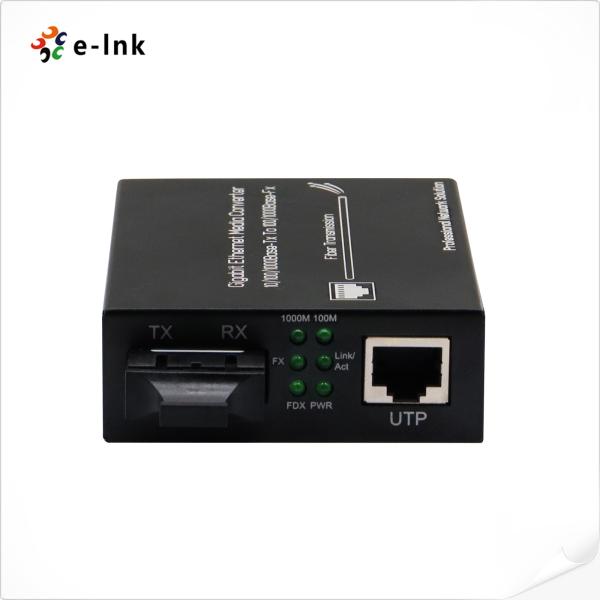

10/100/1000Mbps Gigabit Ethernet Media Converter

Brand Name : E-link

Model Number : LNK-3011 series

Certification : ISO9001 / CE / RoHS / FCC

Place of Origin : China

MOQ : 1pc

Price : US$19-US$26

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 1-3working days

Packaging Details : Fiber Media Converter Standard Carton Packaging

Access mode : 10/100/1000Mbps Gigabit Ethernet

Wavelength : 850nm/1310nm/1550nm

Power supply : DC 5~12V

Power consumption : <5W

Transmission distance : single mode Single fiber: 20/40/60/80 Km

Operating temperature : 0~50ºC

Contact Now

10/100/1000Mbps Gigabit Ethernet Media Converter

Fiber Media Converter Advantages:

  • Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
  • Supporting full-duplex and half-duplex and its auto-sensed
  • Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
  • Supporting the transmission of extra-long VLAN packets
  • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
  • Options in single mode dual fiber, multi-mode dual fiber, and single mode in
    single fibe

Overview

LNK-3011 Series 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts
switching technology to fulfill media conversion. It complies with IEEE802.3,
IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two
types of media network connections: 10Base-T/100Base-TX/1000Base-T, and
1000Base-SX/LX, inter-converting electrical signals of
10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of
1000Base-SX/LX. It extends the transmission distance of network from 100m via
copper cable to 20km via fiber optical cables. It supports transmission in multi-mode
dual fiber, single mode dual fiber and single mode single fiber.

Application

10/100/1000Mbps Gigabit Ethernet Media Converter

Technical Indexs

Parameter Specifications
Access mode 10/100/1000Mbps Gigabit Ethernet
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength 850nm/1310nm/1550nm
Transmission distance

multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)

single mode Dual-fiber: 20/40/60/80 Km

single mode Single fiber: 20/40/60/80 Km

Category-5 twisted pairs: 100m
Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm)

Single mode Dual-fiber: SC (9/125μm)

Single mode Single fiber: SC (9/125μm)
Conversion means Media conversion
BER <10-9
MTBF 100,000 hours
LED indicator POWER (power supply), FX LINK (optical link action), FX (Optical data
transfer ), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable
rate 100M), TP Link/ACT (TP cable packet forwarding action)
Power supply DC 5~12V
Power consumption <5W
Operating temperature 0~50ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

Application

1. Application Fields

  • For intranet prepared for expansion from 10M to 100M/1000M
  • For integrated data network for multimedia such as image, voice and etc.
  • For point-to-point computer data transmission
  • For computer data transmission network in a wide range of business application
  • For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
  • In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks

2. Application Industries
Intelligent transport monitoring system, safety and security monitoring system, campus network,
industrial monitoring (electric power, chemical industry, steel, oil, railway and water
conservancy etc.); CCTV monitoring system;
