10/100/1000Mbps Gigabit Ethernet Media Converter
Advantages
· Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
· Supporting full-duplex and half-duplex and its auto-sensed
· Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
· Supporting the transmission of extra-long VLAN packets
· Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
· Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Overview
LNK-3011WSFP is an Ethernet media converter that converts media transmission between UTP Copper cablings and fiber SFP (Small Form-Factor Pluggable) Transceivers. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-X/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120 km via fiber optical cables.
Technical Indexes
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps Gigabit Ethernet
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
|
|
Wavelength
|
850nm/1310nm/1550nm (Based On SFP Module Used)
|
|
Port
|
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
One optical port: SFP 3.3V
|
|
Conversion means
|
Media conversion
|
|
Power supply
|
DC 5V
|
|
Power consumption
|
<5W
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
Application
- l For intranet prepared for expansion from 10M to 100M/1000M
- l For integrated data network for multimedia such as image, voice and etc.
- l For point-to-point computer data transmission
- l For computer data transmission network in a wide range of business application
- l For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
- l In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks
|
|

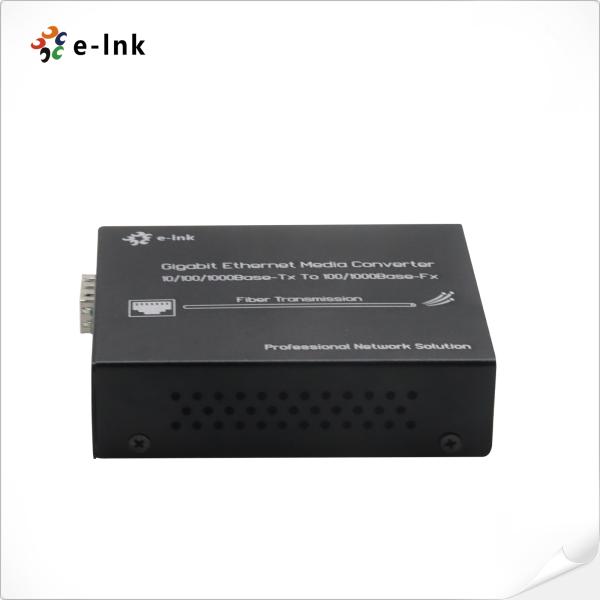

10/100/1000Mbps Gigabit Ethernet Media Converter Images
|
