IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Brand: E-link
Price: 1 USD

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output) Manufactures

Brand Name : E-link

Model Number : LNK-WP-IPE102

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 1000pair/Month

Delivery Time : 1-3 working days

Packaging Details : HDMI Optical Transceiver Standard Package，HDMI Fiber Extender

Input Voltage : IEEE802.3 bt 90W

Switching Capacity : 6Gbps

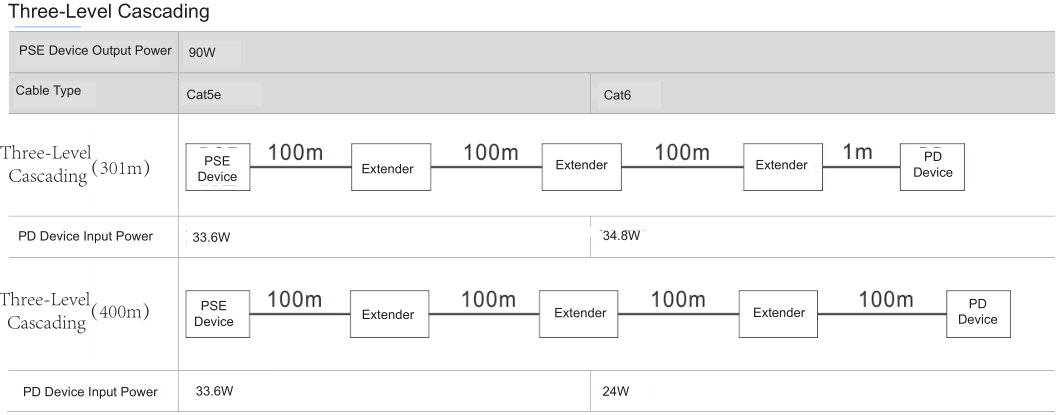

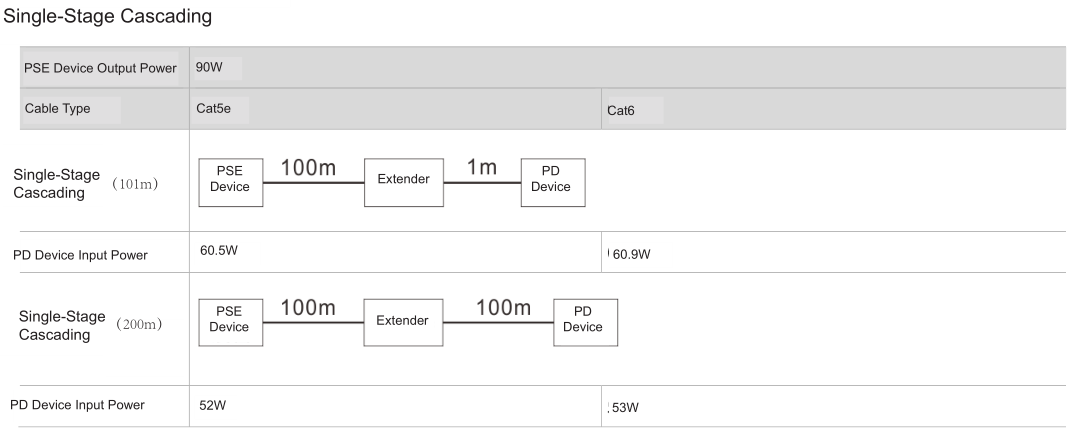

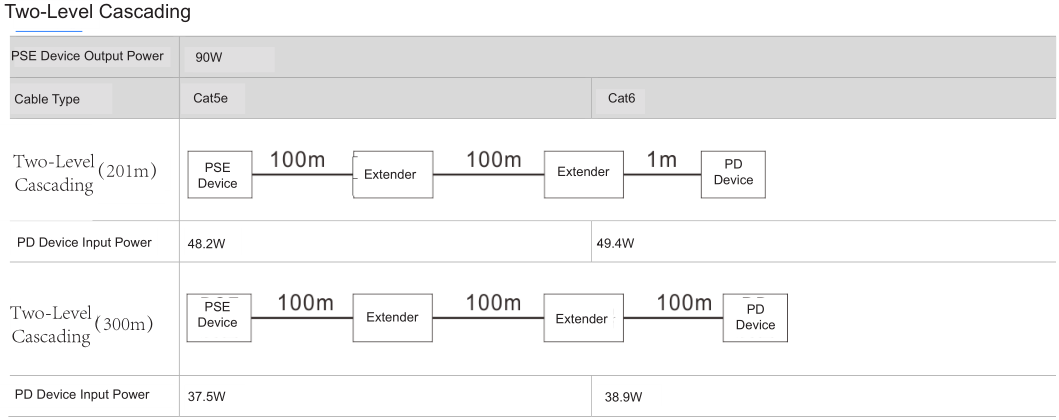

Transmission Distance : Each extender extends by 100m, max 3 grade Cascade, total 400m.

Flow Control : IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Dimensions (WxDxH) : 195 x 75 x 46 mm

Contact Now

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

LNK-WP-IPE102

Overview

LNK-WP-IPE102 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 2-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.

Features

1 x Input, 2 x Output
10/100/1000Mbps Ethernet Ports
All ports support IEEE 802.3af/at/bt standards
Plug-and-play functionality
Wall-mountable design
IP67-rated aluminum case
No external power cable required for installation
Wide operating temperature range: -40°C to 80°C
Enables 100-meter extension of Ethernet connectivity with PoE
Supports 2K MAC address table for connecting more
10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Application

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Ordering Information

Model	Description
LNK-WP-IPE102	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Mounting Options	Wall Mount Bracket is included.
