IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Brand: E-link
Price: 1 USD

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) Manufactures

Brand Name : E-link

Model Number : LNK-WP-IPE101

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

PoE Input Port : 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Output Port : 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Standard : IEEE 802.3af/at/bt

PoE Pin Assignment : 1/2(+), 3/6(-), 4/5 (+), 7/8 (-)

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Dimensions (WxDxH) : 195 x 75 x 46 mm

Mounting Options : Wall-mount

Contact Now

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Advantages

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 1 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Overview

LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Power over Ethernet
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
PoE Output Power	Maximum 65W
Switch Property

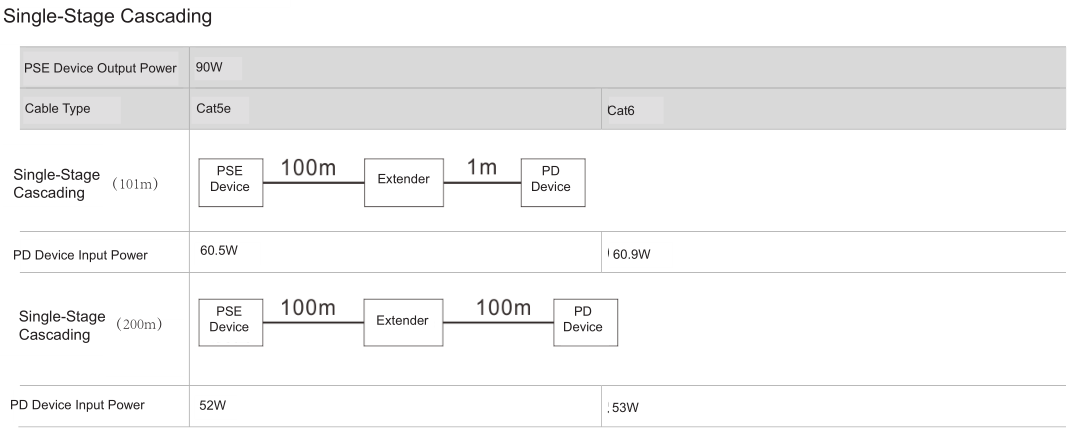

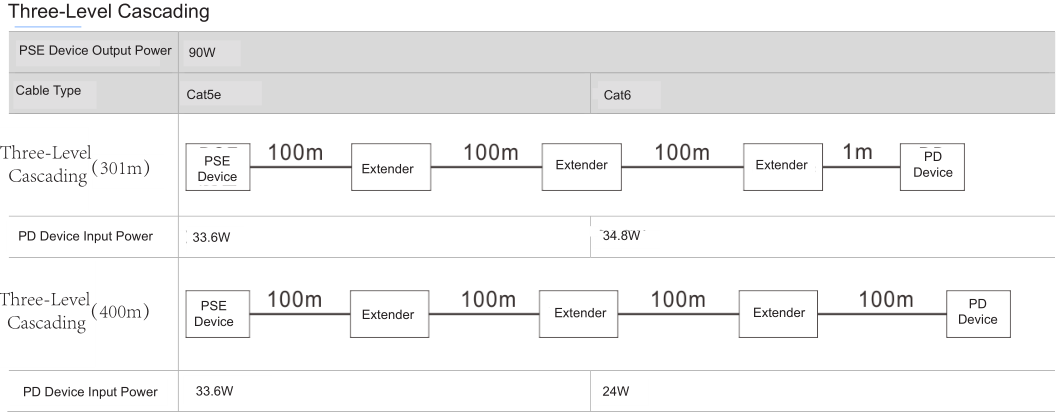

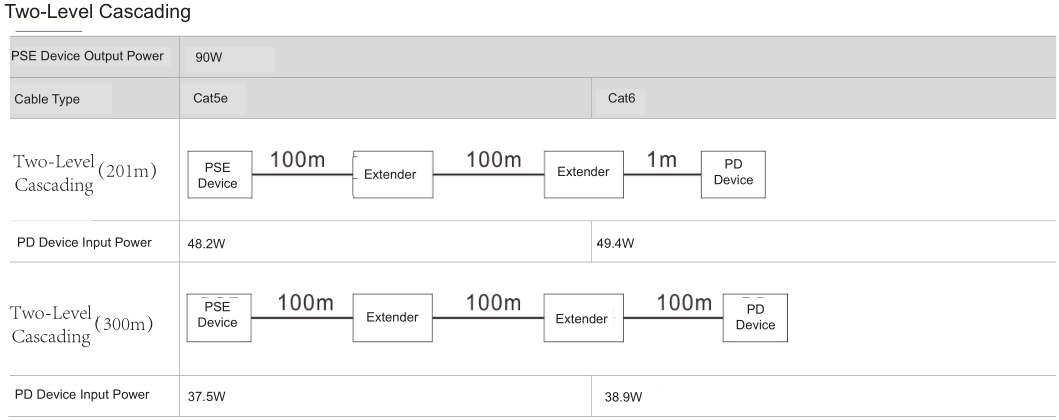

Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount

Application

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Ordering Information

Model	Description
LNK-WP-IPE101	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
Mounting Options	Wall Mount Bracket is included.

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output) Images
