IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Name: IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Brand: E-link
Price: 1 USD

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output) Manufactures

Brand Name : E-link

Model Number : LNK-WP-IPE102

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

PoE Input Port : 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Input Port PoE Output Port : 2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

Cascade Connection : Support 3 grade

PoE Standard : IEEE 802.3af/at/bt

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Dimensions (WxDxH) : 195 x 75 x 46 mm

Contact Now

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)

Advantages

► IP67-rated aluminum case

► 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 1 x Input, 2 x Output

► Enables 100-meter extension of Ethernet connectivity with PoE

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► No external power cable required for installation

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kB jumbo frame support in 1000Mbps full-duplex mode

Technical Indexes

Ethernet Port
PoE Input Port	1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
PoE Output Port	2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Cascade Connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
Input Voltage	IEEE802.3 bt 90W
PoE Output Power	Maximum 65W
Single Port PoE Output	Maximum 60W
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
Transmission Distance	Each extender extends by 100m, max 3 grade Cascade, total 400m.
Environment
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount

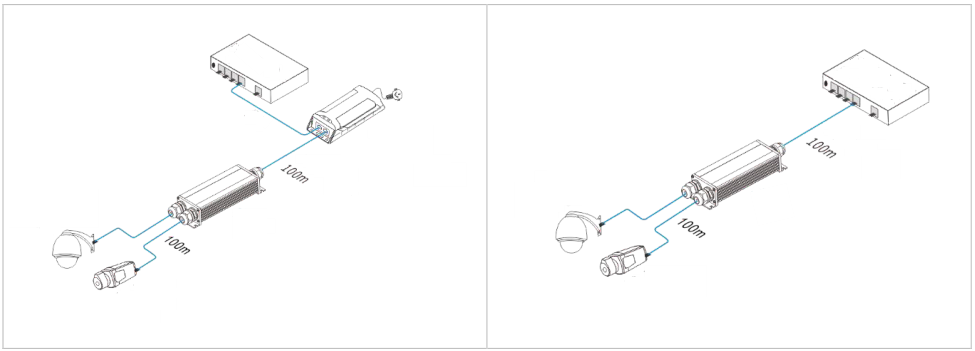

Application
IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)
Ordering Information

Model	Description
LNK-WP-IPE102	IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output
Mounting Options	Wall Mount Bracket is included.

Overview

LNK-WP-IPE102 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 2-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output) Images
