IP67 Waterproof Industrial Gigabit PoE Extender
(1 x Input 1 x Output)
Waterproof Industrial Gigabit PoE Extender Advantage
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► Enables 100-meter extension of Ethernet connectivity with PoE
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Overview
LNK-WP-IPE101 is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 1-out, 90W)
that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100
meters, significantly increasing transmission distance while providing standard PoE power
supply of 50-57V to communicationdevices.

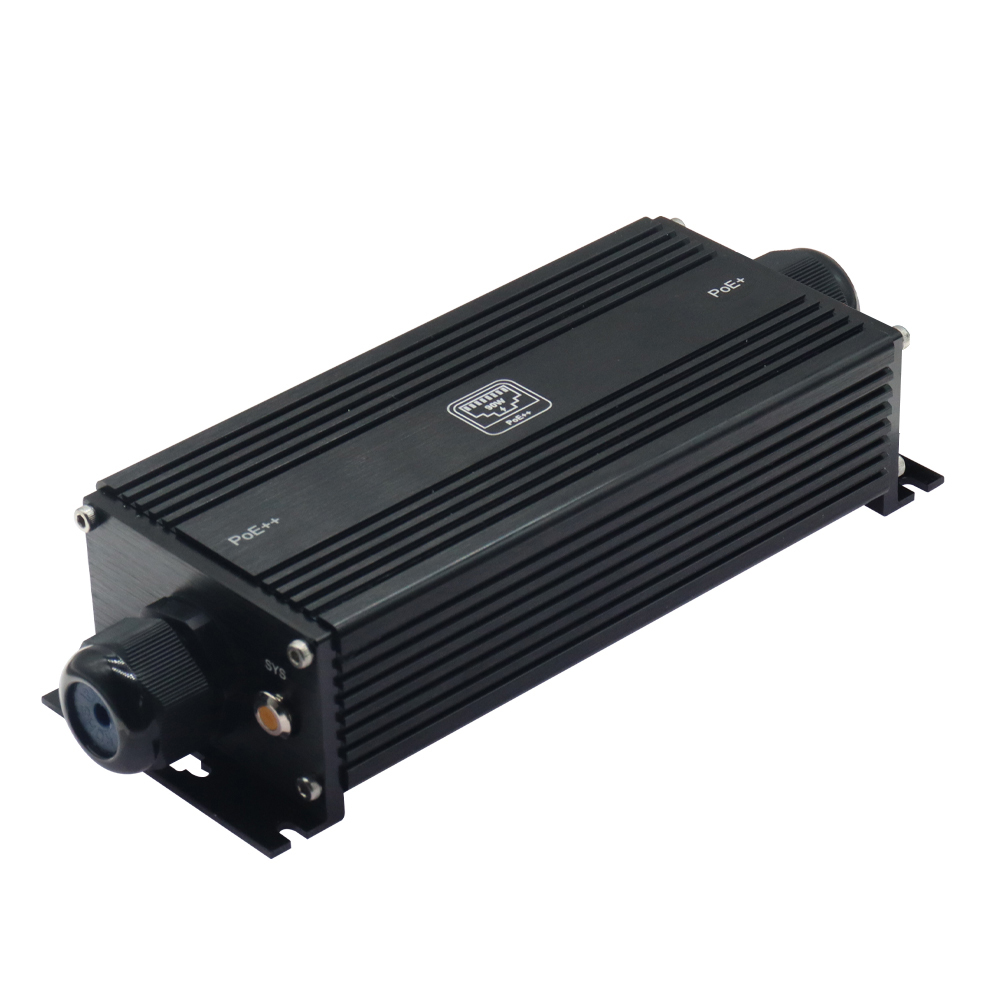

Waterproof Industrial Gigabit PoE Extender Picture
Technical Indexes
|  Ethernet Port
|
| PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| PoE Output Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Cascade Connection | Support 3 grade |
| Power over Ethernet |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| Input Voltage | IEEE802.3 bt 90W |
| PoE Output Power | Maximum 65W |
| Single Port PoE Output | Maximum 60W |
| Switch Property |
| Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Forwarding Modes | Store and Forward |
| Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. |
| MAC Table | 2K |
| Switching Capacity | 6Gbps |
| Packet Forwarding Rate | 4.46Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame | 10K bytes |

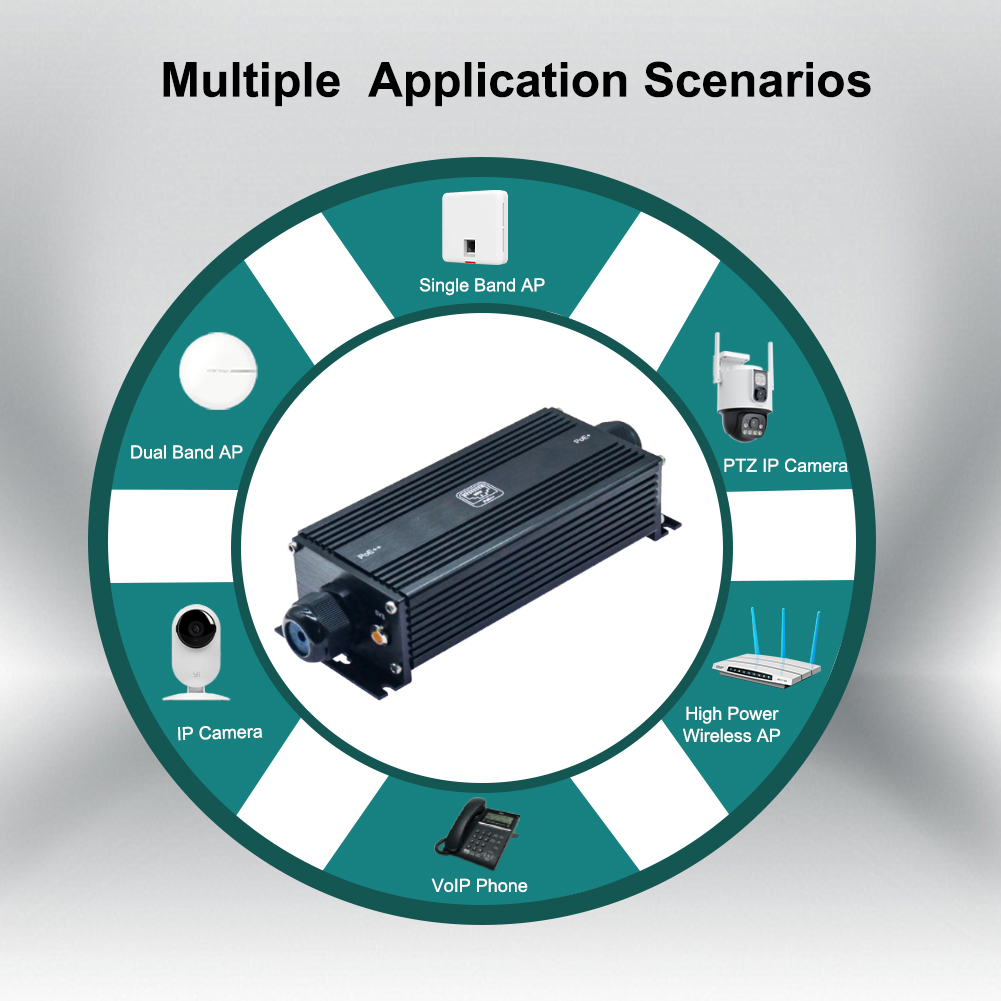

Application
Ordering Information
| Model | Description |
| LNK-WP-IPE101 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output |
| Mounting Options | Wall Mount Bracket is included. |
|
|
