USB Powered 10/100Base-TX to 100Base-FX Ethernet Media Converter
Product Advantages
· USB power via optional Power Adapter Cable or external AC to DC power adapter
· Plug-and-Play capability
· Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex
· Supports MDI/MDIX auto-crossover
· LFP (Link Fault Pass-through) function optional: When optical fiber or UTP is failing, the converter could stop all links, in addition to power light, other LED lights put out.)
· SC, ST FC Connector or SFP Port available (SC default), single mode / multi mode, single fiber/dual fiber
· Converter working mode could be chosen from: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
· Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
· Standalone or install in the 14-slot Powered Chassis
Overview
LNK-1100USB series Fiber Media Converters is a 10/100M Ethernet Media Converter. It can convert Optical－Electric 10M/100M Ethernet signals between UTP interface (TX) and optical fiber interface (FX). It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10Base-T/IEEE802.3u 100Base-TX |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3x Flow Control |
| Processing Type: | Store-and-Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate:: | 14,880pps (10Mbps)
148,800pps (100Mbps) |
| Cabling: | 10/100Base-TX: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 1x RJ45 |
| Address Table Size: | 1024MAC Addresses |
| USB |
| USB Port | USB1.0, 1.1 and 2.0 |
| Optical |
| Cabling: | 62.5/125μm (multi mode); 9/125μm (Single mode) |
| Maximum Distance: | 2km (Multi mode); 20/40/80/120km (Single mode) |
| Wavelength: | 1310nm/1550nm |
| Optical Port: | 1 x SC 100Base-FX |
| Environmental |
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | > 100,000 hrs |
| Electrical and Mechanical |
| LED Indicators |
| Power: | Power Status |
| 10/100TX (Per Port): | Link/Activity, Speed, FDX |
| 100FX (Per Port): | Link/Activity, SD |
| Dimensions (WxDxH): | 71 x 94 x 26 mm |
| Weight: | 0.2Kg |
| Casing: | Metal Case |
| Mounting Options: | Desktop/ LNK-R14 2U Rack |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| FCC part 15,Class A |

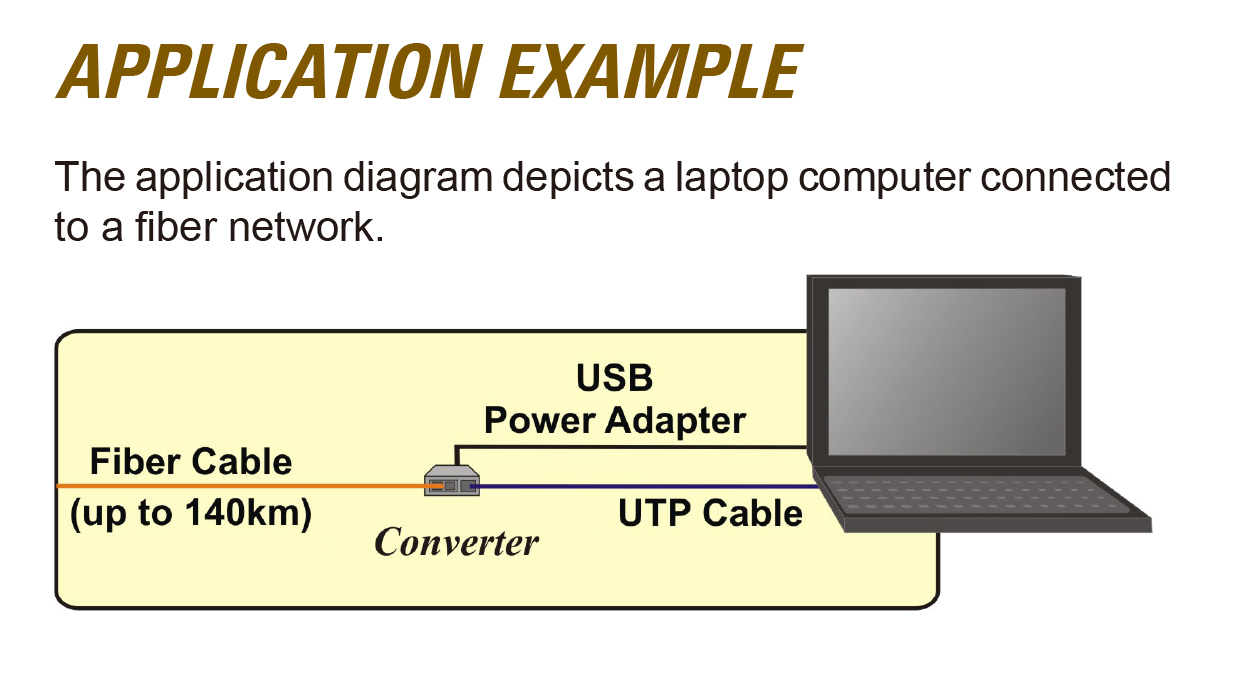

Application
| Model | Description |
| LNK-1100USB | USB Powered 10/100Base-TX to 100Base-FX SFP Ethernet Media Converter |
| Fiber Options: | ►Multi mode/2-fiber/SC; ►Single mode/2-fiber/SC; ►Single mode/WDM 1-fiber/SC |
| Mounting Options: | ► Desktop Bracket;
► Rack-mountable on 2U rack LNK-R14 (Purchase Separately). |
| Power Options: | ►1A/5VDC Power Adapter with DC Jack.
► Power Adaptor is included for all sales. |
