LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports

Name: LED Screen Fiber Converter with 1x10G SFP Fiber Port 8 x 101001000M Ethernet RJ45 Ports
Brand: E-link
Price: 1 USD

LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports Manufactures

Brand Name : E-link

Model Number : LNK-LED108G

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimensions (LxWxH) : 150 x 115 x 50 mm

Input Power : 12~48VDC (Non PoE) 48~57VDC (PoE), Redundant Power (6-pin Terminal Block)

Distance : Depend on SFP+ modules used, 20km recommended.

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Mounting Options : DIN-Rail

Contact Now

LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports

Product Advantages

· 1 x 10G SFP+ fiber optical port

· 10 x Gigabit Ethernet ports, PoE optional

· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· Not support VLAN

Technical Indexes

Interface
Connector:	8 x 10/100/1000M RJ45
Optical Port:	1 x 10G SFP+
Distance	Depend on SFP+ modules used, 20km recommended.
Electrical and Mechanical
Input Power:	12~48VDC (Non PoE) 48~57VDC (PoE) Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max (PoE in use) 253W Max (PoE not in use)
Resolution	1920*1080@60Hz
Compatible brand	NovaStar, Colorlight
Connection method	Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

Overview

The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

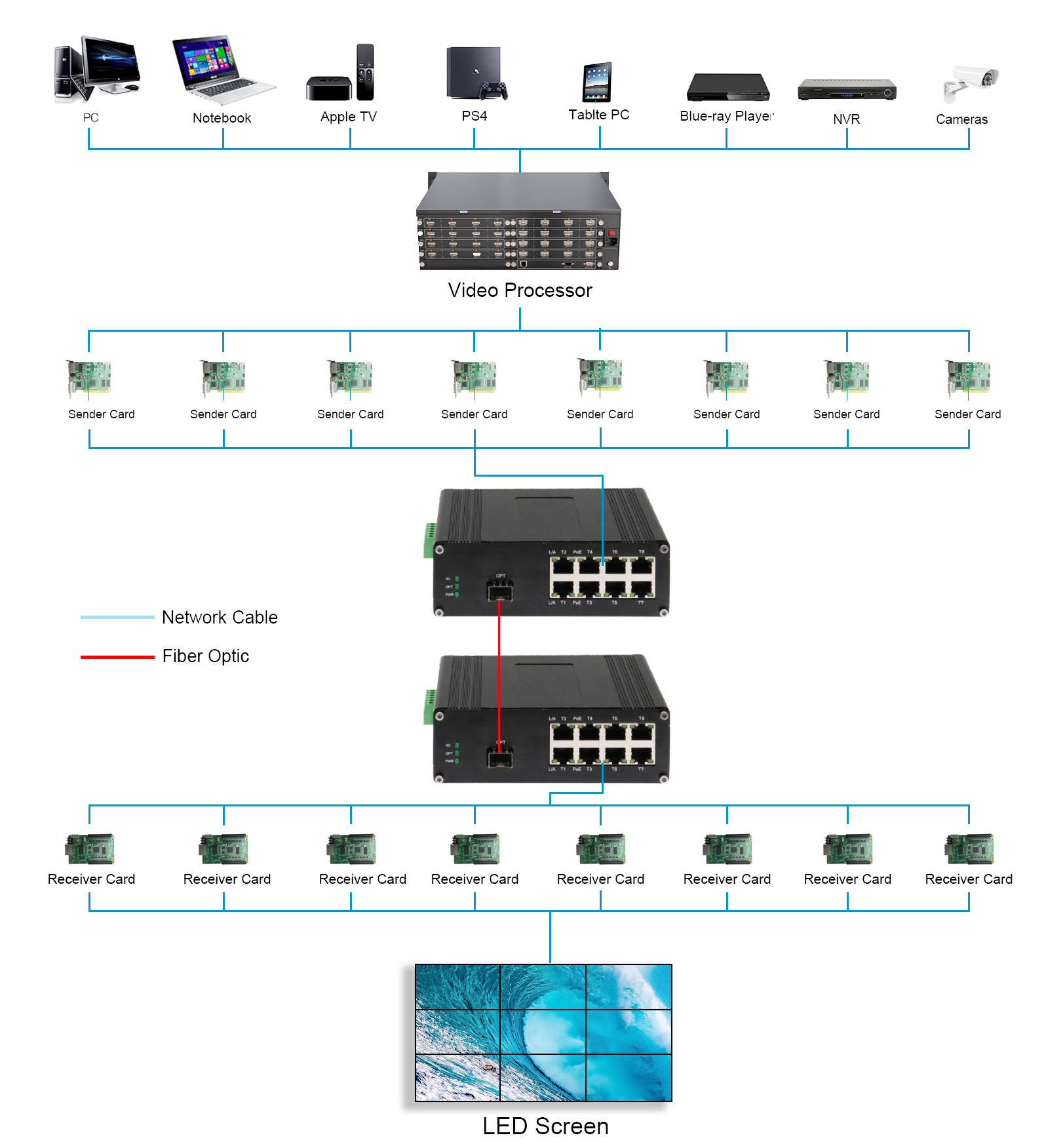

Application

LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports

Ordering Information

Model	Description
LNK-LED108G	Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports.
LNK-LED108GP	Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports.
