Dante Surface Mount 2x2 Dante/AES67 Interface
Dante Surface Mount 2x2 Dante/AES67 Interface Advantage
► 2 analog inputs and 2 analog outputs for line / microphone level.
► Supports adjusting the gain per input from 0 ~ +48dB.
► Output volume control from -60dB to 0dB.
► 48V phantom power per input channel.
► Powered by PoE (IEEE802.3af).
► Supports 44.1k or 48k audio sample rate.
Overview
The LNK- DAN-B202 is a Dante network audio interface allowing users
to integrate up to 2x2 audio channels of Dante audio into networked AV
systems, each input features a 48Vphantom power option. The product also
supports PoE (IEEE802.3af) power capability and a small form factor that
makes it easy to put Dante connectivity wherever it's needed and it can be
close to the audio source or sink to eliminate the need for costly and
interference-prone analog wiring.
DVI Fiber Extender Picture
Technical Indexes
| Input |
| Input | (2) MIC/LINE IN |
| Input Connector | (2) 3-pin Green Terminal Blocks |
| Phantom Power | 48V, software selectable for each input |
| Output |
| Output | (2) LINE OUT |
| Output Connector | (2) 3-pin Green Terminal Blocks |
| Output Type | Balanced line level with automatic muting on loss of Dante signal |
| Audio Performance |
| Gain | Input: 0 ~ +48dB, 6dB per step Output: -60 ~ 0dB, 1dB per step |
| Max Level | Input: +18dBu @ 0dB input gain Output: +18dBu @ 0dB output gain |
| Input Impendence | >1.8kΩ |
Ordering Information
| Model | Description |
| LNK- DAN-B202 | Dante Surface Mount 2x2 Dante/AES67 Interface |
|
|

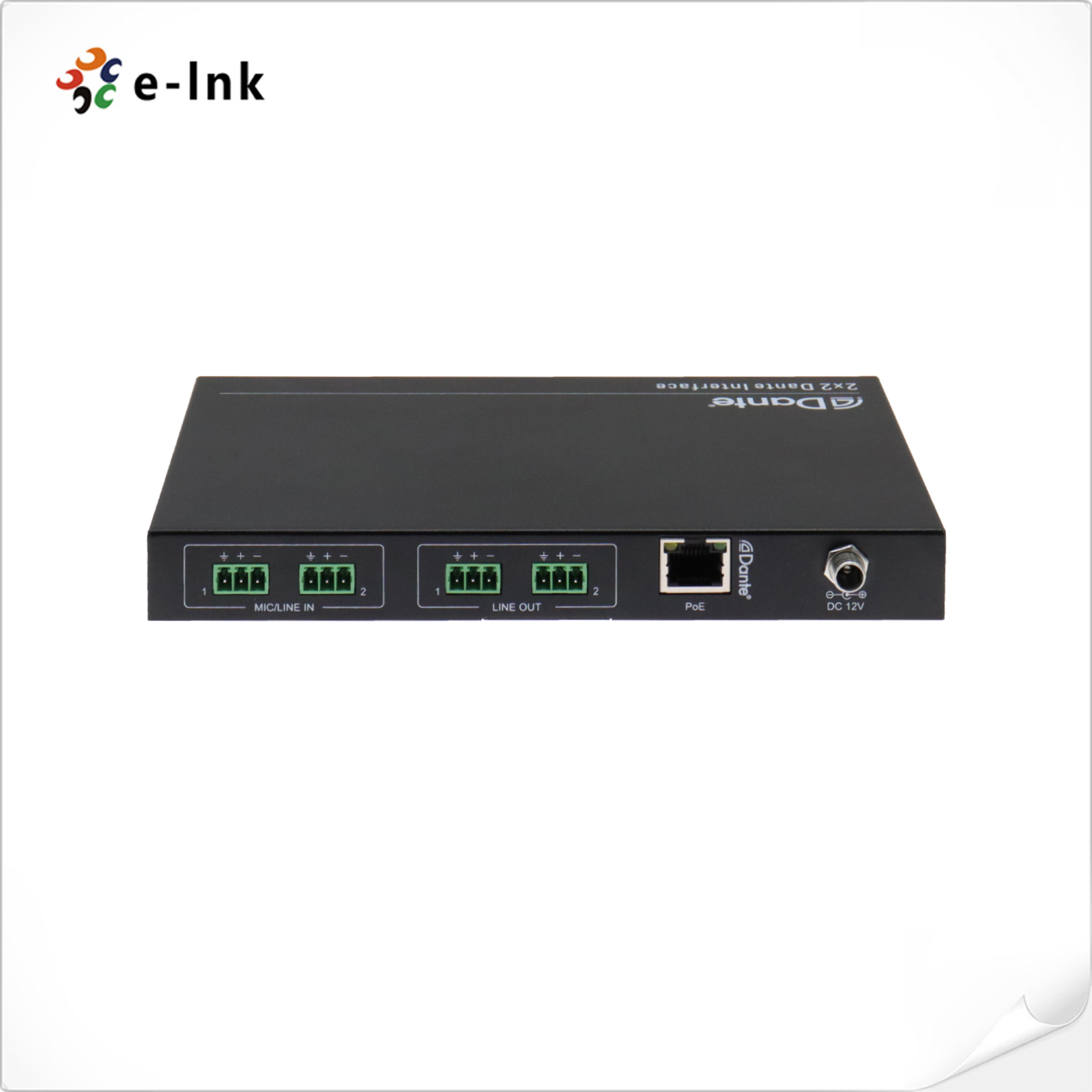

Dante Surface Mount 2x2 Dante/AES67 Interface Images
|
