4K 2X2 Video Wall Controller & Player

Name

Specification

Input signal

VGA

HD15 interface and link with 1 audio interface of 3.5

Support 640x480/85Hz to 1920x1200/60Hz

HDMI

HDMI1.4 (HDCP1.4), HDMI embedded audio; The maximum input resolution supports 3840 x 2160/60Hz (RGB420), the maximum output resolution supports single screen 3840x 2160/30Hz, and the full screen resolution is 3840 x 2160/30Hz * 4

DVI

DVI-I interface (24+5), with a maximum resolution support of 3840x2160/30Hz

Video

Automatic identification the system of NTSC,PAL and SECAM, link with 1 audio interface of 3.5

USB

Standard interface of 2.0,can insert U disk, embed audio;

Support video,image,MP3,MP4,TXT ；

Output signal

HDMI interface

4 HDMI output, support joint pattern of 2x2, 1x1, 1x2, 1x3,1x4,4x1, 3x1,2x1,;Support 3840*2160/30Hz 1920*1080P/60Hz,1280*720/60Hz;

Audio

3.5 Audio interface, support left and right channels and stereo, AV signal switch synchronously

Splicing scale

Simple four-piece splicing The input signal supports 90°180°270° full screen rotation (resolution is 1920x1080p or below), and the output screen supports 180° mirror/flip;

Control code

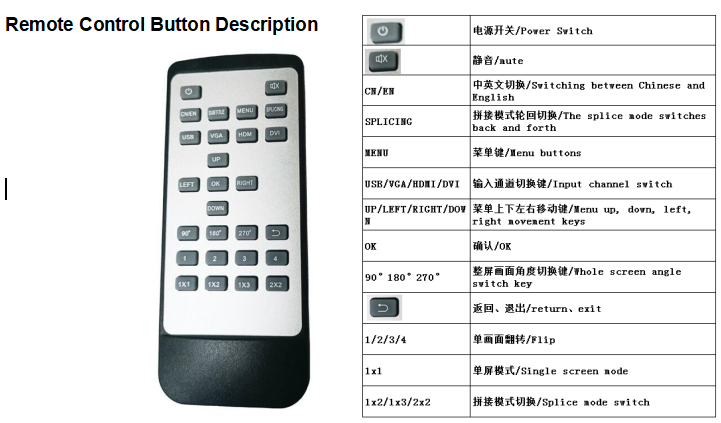

IR case key

Power

DC12V

Case size

217mm*162mm*47mm

Weight(1U)

1100g
