Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Name: Micro Mini 101001000BASET to 1001000BASEX SFP Media Converter
Brand: E-link
Price: 1 USD

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC208SG-SFP

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Access mode : 10/100/1000Mbps Gigabit Ethernet

Fiber Port : 1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)

Wavelength : 850nm/1310nm/1550nm

Dimensions (W x D x H) : 62 x 44 x 18 mm

LFP : Not Support

Power supply : DC 5V (Type-C)

Contact Now

Micro type 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter

Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► USB-powered for portability, 5VDC power input

► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Micro type design

► Support 9k jumbo frame

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength	850nm/1310nm/1550nm
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
LFP	Not Support
Power supply	DC 5V (Type-C)
Power consumption	3W
Maintaining temperature	-40~70ºC
Dimensions (W x D x H)	62 x 44 x 18 mm

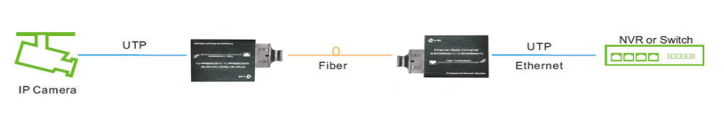

Application
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Ordering Information

Model	Description
Model	Description
LNK-M3011	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor
LNK-M3011-20	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M3011S-20A	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor
LNK-M3011S-20B	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor

Overview

The LNK-IMC208SG-SFP is a managed industrial network switch, featuring 8 10/100/1000Base-TX ports and 2 100/1000Base-X SFP ports. Among them, the 8 ports are RJ45 Ethernet interfaces, and the 2 100/1000Base-X SFP ports support 1 or 2 core single-mode fiber and multi-mode fiber. With its stable and reliable design as well as user-friendly features, this product serves as an ideal choice for integrating networks between remote locations, enabling efficient connection of various network devices such as IP cameras and wireless access points.
