Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

Product Categories
E-link China Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

Brand Name : E-link

Model Number : ZP-HIMC202GP-SFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Mounting Options : DIN-Rail / Wall-mount

Dimensions (WxDxH) : 95 x 70x 36mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 4-pin terminal block

Casing : Aluminum Case

Contact Now

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► Power booster function with wide range 12~48VDC Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature


Overview

ZP-HIMC202GP-SFP Series is a DIN rail type 802.3at 30W PoE Switch that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. ZP-HIMC202GP-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Ordering Information

Model

Description

ZP-HIMC202GP-SFP

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.



Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function

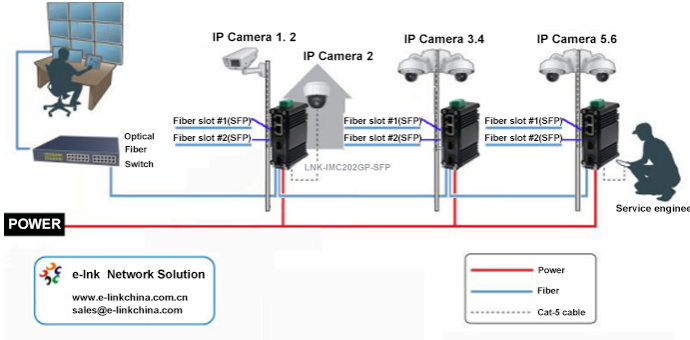

Application

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch with 12~48VDC Power Booster Function
