Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)
Overview
The LNK-INJ301-100 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt PoE++
100W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to
connect the PoE device such as camera and access point with a non PoE LAN switch within the
distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support
10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 100W PoE output.
Features
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 100W PoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10 BASE-T Ethernet
IEEE802.3u 100 BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3 x Flow Control
|
| Processing Type: |
Forward |
| |
Half-duplex, Full-duplex |
| Forward Filter Rate: |
1,488,000pps (1000Mbps) |
| Cabling: |
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
|
| Maximum Distance: |
Cat5 UTP up to 100m |
| Connector: |
2x RJ45 |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
100W Max. |
| Power over Ethernet: |
| Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
| |
IEEE 802.3at Power over Ethernet Plus |
| |
IEEE 802.3af Power over Ethernet |
| Port: |
RJ45 |
| Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
| PoE Budget: |
Up to 100-watt PoE budget (48VDC)
Up to 100-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
|
|

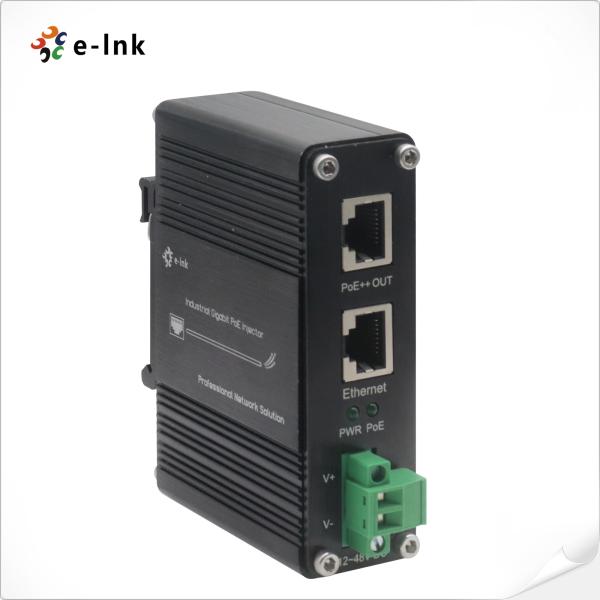

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Images
|
