Mini Bi-directional HD/3G-SDI to Fiber Converter
Mini Bi-directional HD/3G-SDI to Fiber Converter Advantages
► Each channel includes 4-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80 km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Mini Bi-directional HD/3G-SDI to Fiber Converter Overview

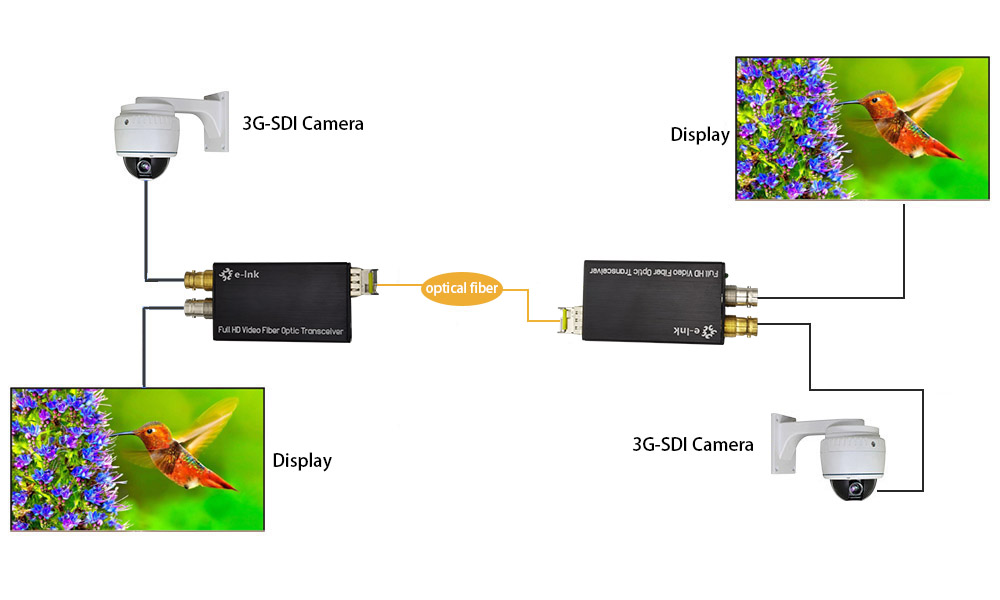

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.
Mini Bi-directional HD/3G-SDI to Fiber Converter Technical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 0-20Km (Other distance available) |
| Wavelength | 1310nm/1550nm |
| Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| | 525/29.97 NTSC, 525/23.98 NTSC |
| | 720p50, 720p59.94 |
| | 1080i 23/24/30/50/59.94 |
| | 1080P 23.98/24/30/50/60 |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| | SMPTE425M3Gb/s Mapping(3G-SDI) |
| | SMPTE424M 3Gb/s serial interface(3G-SDI) |
Mini Bi-directional HD/3G-SDI to Fiber Converter Ordering Information
| Model | Description |
| LN K-MHD-BIMM | Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI20 | Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-MHD-BI40 | Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
| Model | Description |
| LNK-M3G-BIMM | Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-M3G-BI20 | Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-M3G-BI40 | Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
Product Tags:
|
|

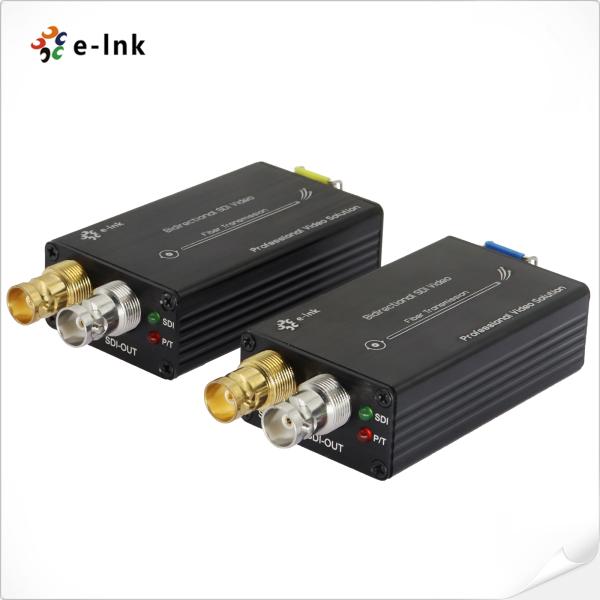

Mini Bi-directional HD/3G-SDI to Fiber Converter Images
|
