1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Extender
1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Extender Advantages
► 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Syn over one fiber
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
► Built-in CWDM system, SFP modules for each path
► Support automatic cable equalization based on the data rate detected LED status indicators monitor the critical parameters
1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Extender Overview

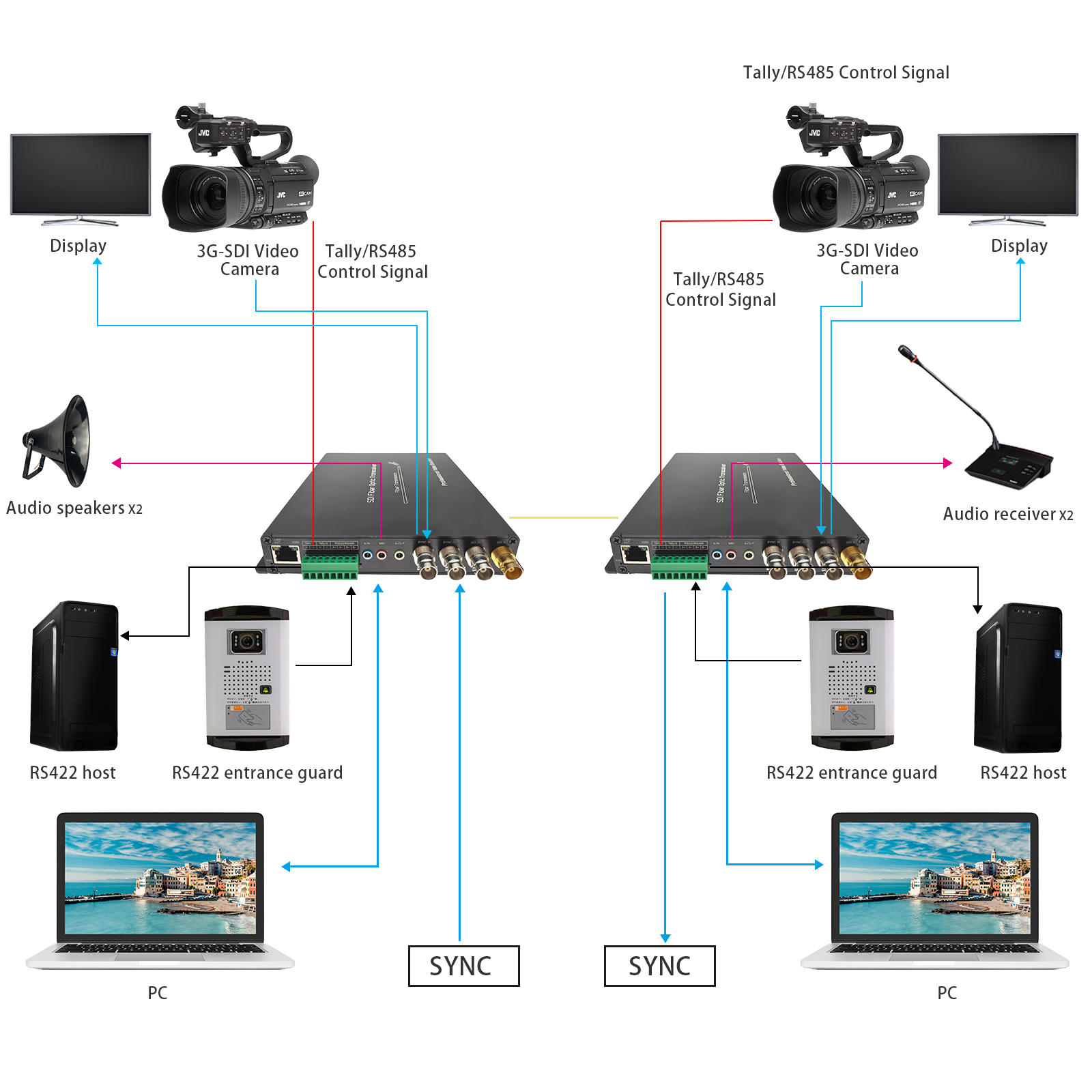

E-link LNK-3G2V2BA2D1E1T1S 3G-SDI fiber extender provides transmission of 1Ch BIDI 3G-SDI Video, 2Ch Backward Analog Audio, 1Ch BIDI RS422, 1Ch 100M Ethernet, 1Ch Backward Tally and 1Ch Backward Analog Tri-level Sync over Fiber Converter, including 1 transmitter & 1 receiver, used by pairs over single mode optical cables. This 3G-SDI optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Since optical signals are not affected by electromagnetic noise, LNK-3G2V2BA2D1E1T1S makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3G2V2BA2D1E1T1S pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km (optional 40/60/80km).
1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber ExtenderTechnical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 20Km |
| Wavelength | 1310nm/1490nm//1550nm |
| 3G-SDI Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| | SMPTE425M3Gb/s Mapping(3G-SDI) |
| | SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Video Input | 1Ch SDI IN + 1Ch SDI OUT on TX |
| Video Output | 1Ch SDI IN + 1Ch SDI OUT on RX |
1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Extender Ordering information
| Model | Description |
| LNK-3G2V2BA2D1E1T1S | 1Ch BIDI 3G-SDI Video + 2Ch Backward Analog Audio + 1Ch BIDI RS422 + 1Ch 100M Ethernet + 1Ch Backward Tally + 1Ch Backward Analog Tri-level Sync over Fiber Converter, SMF, LC, 20KM, including 1 transmitter & 1 receiver, used by pairs |
|
|
