24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ L3 Managed Switch
Product Advantages
► 24x 10/100/1000M RJ45 (PoE1-24) + 4x 10G SFP+
► L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2
► Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM; Support IPV4/IPV6
► Genius PoE, PoE power supply priority, PoE watchdog, PoE port power supply and power configuration, PoE time management
► Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
► Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;
► Lightning Protection: Common mode ≥6 KV, static: contact ≥6KV, air ≥8KV
Overview
E-link LNK-L4024GP-SFP 24-port Gigabit Layer 3 managed Ethernet PoE switch. Support 24 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions.
Technical Indexes
| Input/output Port |
| AC INPUT | AC100-240V,50/60Hz |
| Ethernet Port | 24 * 10/100/1000Mbps PoE Port 4 * 10G SFP Port 1 * RJ45 Console Port |
| Performance |
| Bandwidth | 598Gbps |
| Packet Buffer Memory | 131Mpps |
| DDR SDRAM | 4G |
| Flash Memory | 256M |
| Package cache | 64M |
| MAC Address | 32K |
| Jumbo frame | 12Kbytes |
| VLANs | 4096 |
| Standard |
| PoE protocol | IEEE802.3af (15.4 W) IEEE802.3at (30 W) IEEE802.3bt (90 W) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT); EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Network Media | 10BASE-T: Cat3; 4; 5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP (≤100 M) 1000BASE-TX: Cat5 or above UTP (≤100 M) Multi-mode Fiber: 50/125; 62.5/125; 100/140um Single-mode Fiber: 8/125; 8.7/125; 9/125; 10/125um |
| Certification |
| Safety Certificate | CE; FCC; RoHS |
| Environmental standards |
| Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Working height: Up to 10,000 feet Storage height: Up to 10,000 feet |
| Function indication |
| Indicator Light | PWR(Power indicator), SYS(System lights), Link/ACT(Link light/data light) |
| Physical specifications |
| Product Information | Product Dimensions: 440*336*44.5mm Package Dimensions: 570*450*90mm Product N.W: 5.5KG Product G.W: 6KG |
| Packing Information | Carton Dimensions: 600*495*435mm Packing Quantity: 4PCS |
| Voltage | Input Voltage: AC100-240V/50-60Hz Power supply: 52V7.69A (52V/15.4A Optional) |
Ordering Information
| Model | Description |
| LNK-L4024GP-SFP | 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ L3 Managed Switch |
|
|

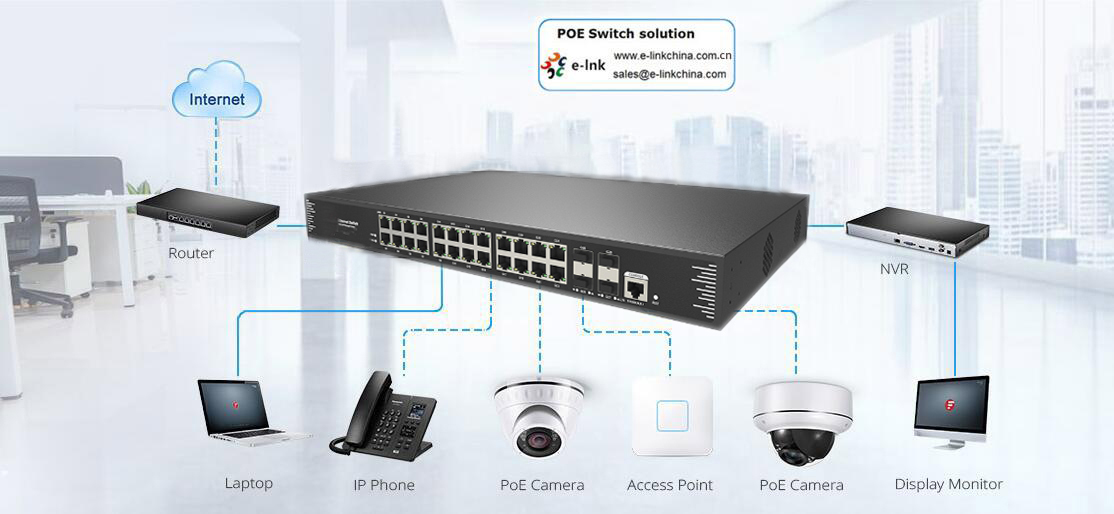

24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ L3 Managed Switch Images
|
