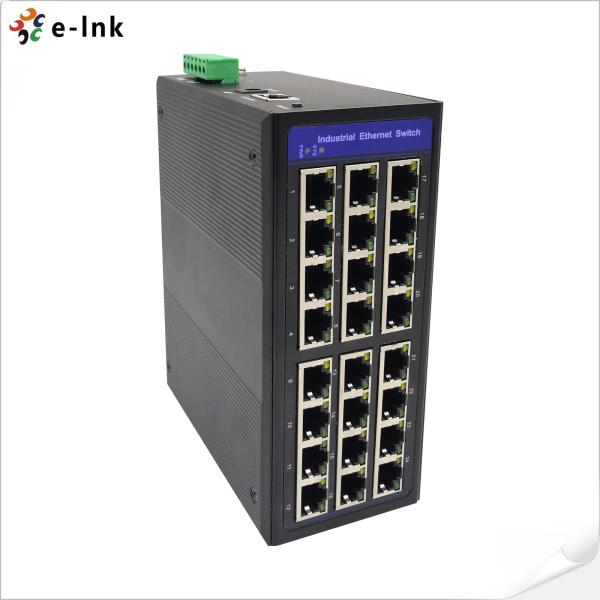

Managed Industrial 16-port 10/100/1000T 802.3at PoE
+ 8-port 10/100/1000T Ethernet Switch
Advantage
► 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
Overview
LNK-GYM0816GP Series is a new generation industrial Power over Ethernet Managed Ethernet switch
with 16-Port 10/100/1000Base-T 802.3at PoE and 8-port 10/100/1000T that provide stable and reliable
Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the
broadband network intervention market, to offer and realize Ethernet data exchange, convergence and
long-distance optical transmission with efficient bandwidth and reliable network solutions for users. The
industrial switch complies with various characteristics such as mini size, no fan, low power consumption,
high reliability and stability, and easy to maintain.
Technical Indexes
| PoE |
| PoE Standard | 16 x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Power Information |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 48-57V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 160mm x 130mm x 70mm (L x W x H) |
| Installation mode | DIN Rail/Wall-mountable |
| Weight | 1000g |
| Working Environment |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~85℃ |
| Warranty |
| MTBF | 500,000 hours |
| Defects Liability Period | 5 year warranty, lifetime technical support |

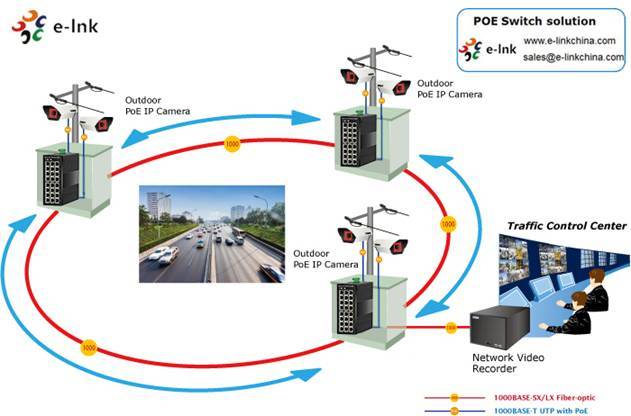

Application
Ordering Information
| Model | Description |
| LNK-GYM0816GP | Managed Industrial 16-port 10/100/1000T 802.3at PoE + 8-port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
