DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

Brand Name : E-link

Model Number : LNK-DVI-1D1BA Fiber optic extender

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

The warranty : 1-year warranty

Dimensions (WxDxH) : 120 x 83 x 28 (mm)

Operating Temperature : -20℃ ~ +70℃

Humidity : 5% ~ 90%

Power dissipation : MAX 4W

Power supply : The power adapter: DC 5V

Contact Now

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender


Advantages

► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;

► Support resolution up to 1920*1200@60Hz ;

► Special support 1600*1200 @60HZ

► Support external bidirectional stereo audio transmission;

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;


Overview

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender

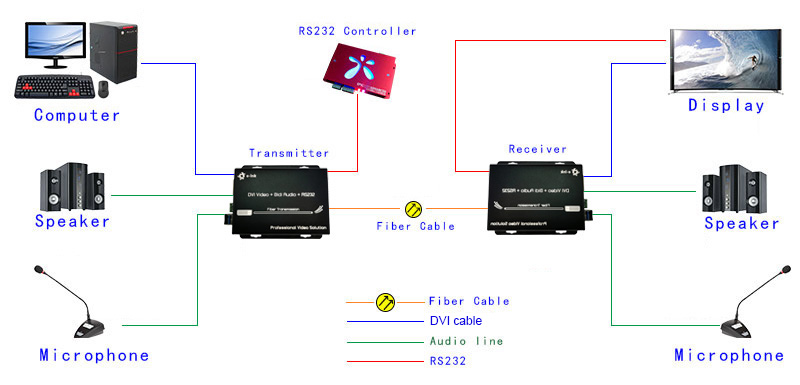

Application

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
