Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Features
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3bt PoE+ (90W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs

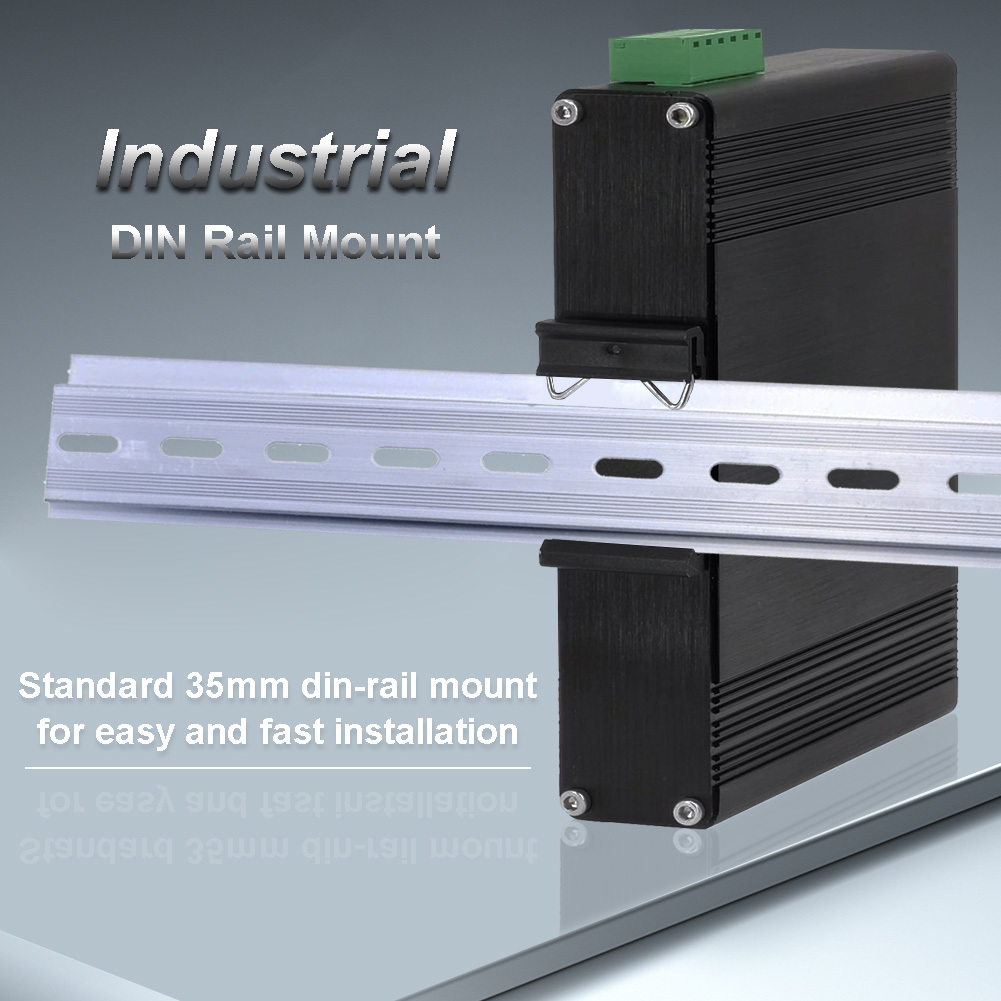

► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Overview
LNK-IMC204GP90 Series is a 4 ports 10/100/1000Base-TX + 2 port 100/1000Base-FX Hardened PoE switch. The Switch provides 4 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Technical Indexes
| Interface |
| Connector: | 4 x RJ45 |
| Optical Port: | 2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57V DC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 360W Max. (PoE in use) |
| 5W Max. (PoE not in use) |
| Standard: | IEEE802.3af/at/bt |
| PoE: |
| Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 90W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| SFP: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 115 x 30 mm |
| Weight: | 0.5Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Ordering Information
| Model | Description |
| LNK-IMC204GP90 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC204GP90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC204GPS90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC204GPF90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC204GP90-SFP | Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

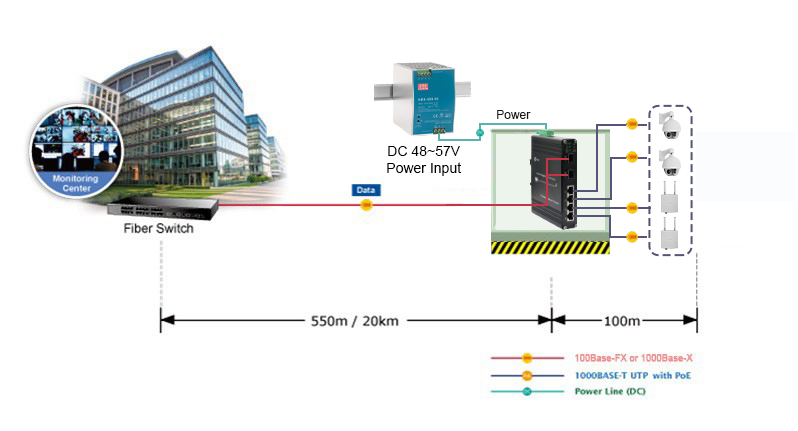

Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Application Picture

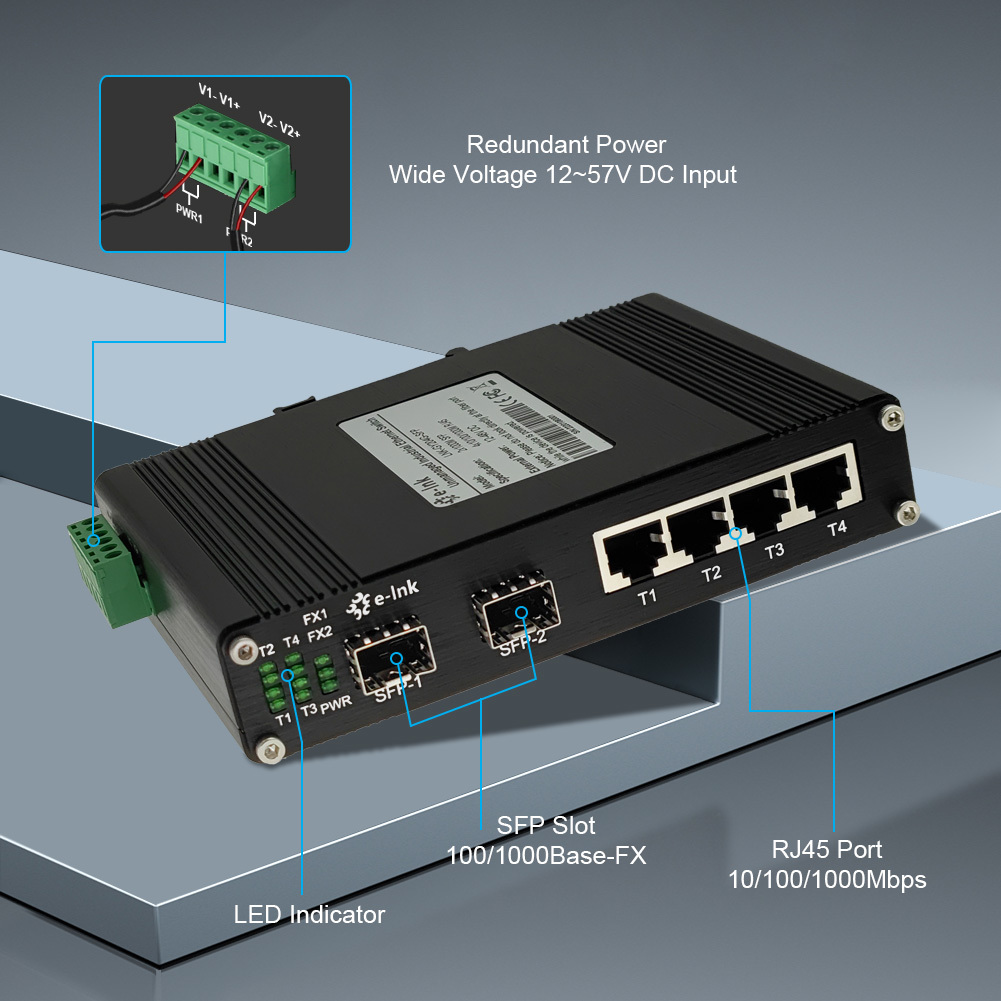

Industrial 4-port 10/100/1000T 802.3bt PoE + 2-port 100/1000X Ethernet Switch Pictures
