Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch

  • 1
  • 2
  • 3

Brand Name : E-Link

Model Number : LNK-IMC108GP

Certification : ISO9001，ROHS，FCC，CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 4000 Pcs/Month

Delivery Time : 3-5 Working Days

Packaging Details : Ethernet Switch standard export package

Input Pwer : 48~57VDC, Redundant Power (6-pin Terminal Block)

Weight : 0.6Kg

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Casing : Aluminum Case

Packet Buffer Memory : 2.75M bits

Mounting Options : DIN-Rail mount

Contact Now

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch


Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Features

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports IEEE 802.3at PoE+ (30W per port)

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow Control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail mounting installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Overview

LNK-IMC108GP Series is an 8 ports 10/100/1000Base-TX + 1 port 100/1000Base-X Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Technical Indexes


Interface

Connector:

8 x RJ45

Optical Port:

1 x 100/1000Base-X (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

253W Max. (PoE in use)

5W Max. (PoE not in use)

Standard:

IEEE802.3af/at

PoE:

Port:

RJ45 Port 1 ~ Port 8

Max. Power per Port:

30W Max per port

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE:

Per Port Status

Ethernet (Per Port):

Link/Activity

Fiber:

FX1

Dimensions (WxDxH):

150 x 115 x 50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount


Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Ordering Information


Model

Description

LNK-IMC108GP

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC108GP-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC108GPS-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC108GPF-20

Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC108GP-SFP

Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 1-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed

Power Options

► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.

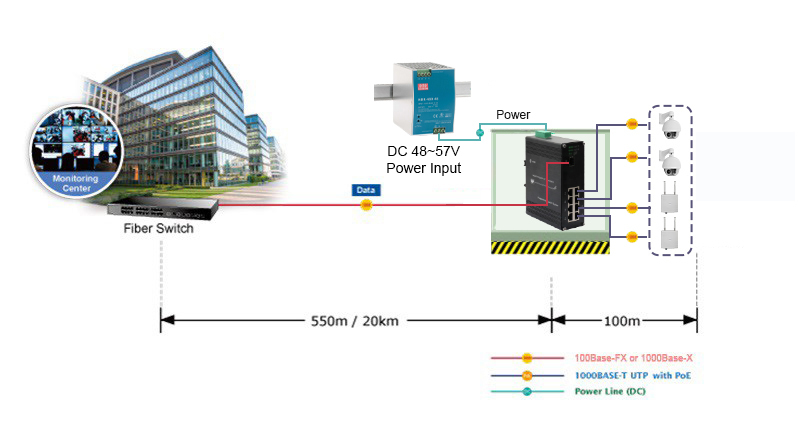

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Application Picture

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch Pictures

Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch


Industrial 8-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000Base-X Ethernet Switch
