IP67 Waterproof Industrial Gigabit PoE Switch

Name: IP67 Waterproof Industrial Gigabit PoE Switch
Brand: E-link
Price: 1 USD

IP67 Waterproof Industrial Gigabit PoE Switch Manufactures

Brand Name : E-link

Model Number : LNK-WP-IPS103

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Product Size : 195 x 75 x 46 mm

Operating temperature : -40°C to 80°C (-40°F to 176°F)

Weight : 0.6 kg

Mounting Options : Wall-mount

CasingCasingCasingCasingCasing : Aluminum Case

Input voltage : 48 ~57V DC

MAC Table : 2K

Contact Now

IP67 Waterproof Industrial Gigabit PoE Switch

Product Advantages

► IP67-rated aluminum case

► 3 x 10/100/1000Mbps Ethernet Ports

► All ports support IEEE 802.3af/at/bt standards

► 48 ~ 57V DC Power Input

► Wall-mountable design

► Wide operating temperature range: -40°C to 80°C

► Plug-and-play functionality

► Supports 2K MAC address table for connecting more

► 10kb jumbo frame support in 1000Mbps full-duplex mode

► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment

Overview

LNK-WP-IPS103 is an industrial-grade IP67-rated Gigabit PoE Switch that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 48V to communication devices.

Technical Indexes

Ethernet Port
PoE Port	3 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands
Power over Ethernet
PoE Standard	IEEE 802.3af/at/bt
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-), 4/5 (+), 7/8 (-)
PoE Output Power	Single Port Maximum 90W, Total 270W
Power Input
Input voltage	48 ~57V DC
Power port	DC, M25 x 1.5 Cable Glands
Switch Property
Standards	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet
Forwarding Modes	Store and Forward
MAC Table	2K
Switching Capacity	6Gbps
Packet Forwarding Rate	4.46Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC
ESD Protection	6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2
Protection Level	IP 67
Explosion-Proof Rating	IK10
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	195 x 75 x 46 mm
Weight	0.6 kg
Casing	Aluminum Case
Mounting Options	Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-WP-IPS103	IP67 Waterproof Industrial Gigabit PoE Switch
Mounting Options	Wall Mount Bracket is included.

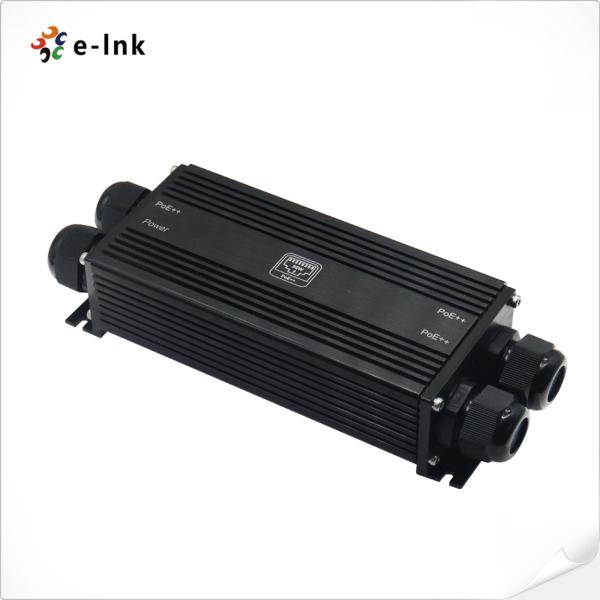

IP67 Waterproof Industrial Gigabit PoE Switch Images
