4 Port USB 2.0 Fiber Extender
Product Advantages
► Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices
► Operates with USB 1.1 and USB 2.0 hosts
► Supports all USB devices up to 480 Mbps
► Distance of up to 200m over multi-mode fiber optics (SFP transceiver modules included)
► Integrated hub provides four remote USB 2.0 ports.
► Number of devices can be increased using additional USB hubs
► Transparent USB extension
► Low RFI / EMI profile for sensitive applications
► Surface-mountable
Technical Indexes
| Performance |
| Local Unit
| Upstream Port | USB2.0 Type A Male |
| Downstream Port | USB2.0 SFP*1 |
| Remote Unit | Upstream Port | USB2.0 SFP*1 |
| Downstream Port | 4-Port |
| USB Power Supply | 1*500mA |
| Operation Mode | Support low speed(1.5 Mbps), full speed(12 Mbps), and high speed(480 Mbps) USB data transfer |
| Connections |
| USB2.0 Input | USB2.0 Type-A Female |
| USB2.0 Output | USB2.0 Type-A Female |
| Optical | 1x SFP port |
| Cable |
| Fiber Cable Type | Multi-Mode |
| Max. Length | ≤ 200 meters |
| Mechanical |
| Construction | High-impact Alufer enclosure |
| Dimensions (L x W x H) (Unit:mm) | LOCAL EXTENDER : 104*114*28 REMOTE EXTENDER: 104*114*28 |
| Net Weight | LNK-U4F1-2.0-L: 200g LNK-U4F1-2.0-R: 350g |
| Environmental |
| Operating Temperature | 32° to +122° F. (0° to +50° C) |
| Storage Temperature | -40° to +185° F. (-40° to +85° C) |
| Operating Humidity | 5% to 80% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Requirements |
| External AC Power Adapter | Local Unit:Power adapter at host is not required |
| | Remote Unit: Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A 5/2.5mm jack |
| Power Consumption | LNK-U4F1-2.0-T: 2watts LNK-U4F1-2.0-R: 3.5 watts |
| Warranty |
| Limited Warranty | 2 year warranty |
Overview
LNK-U4F1-2.0 Series provides true USB 2.0 extension at up to 480 Mbps over 200m/600ft of multi-mode fiber optics, without the need of additional software drivers.
A true plug-and-play solution, the LNK-U4F1-2.0 Series is compatible with all leading operating systems, and supports all USB 1.1 and 2.0 device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.
An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.

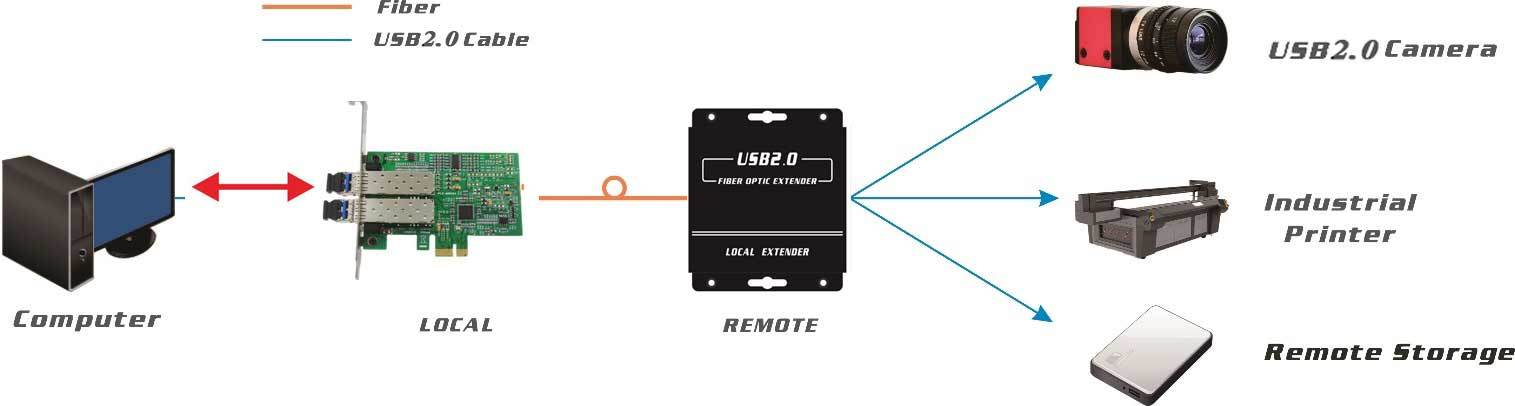

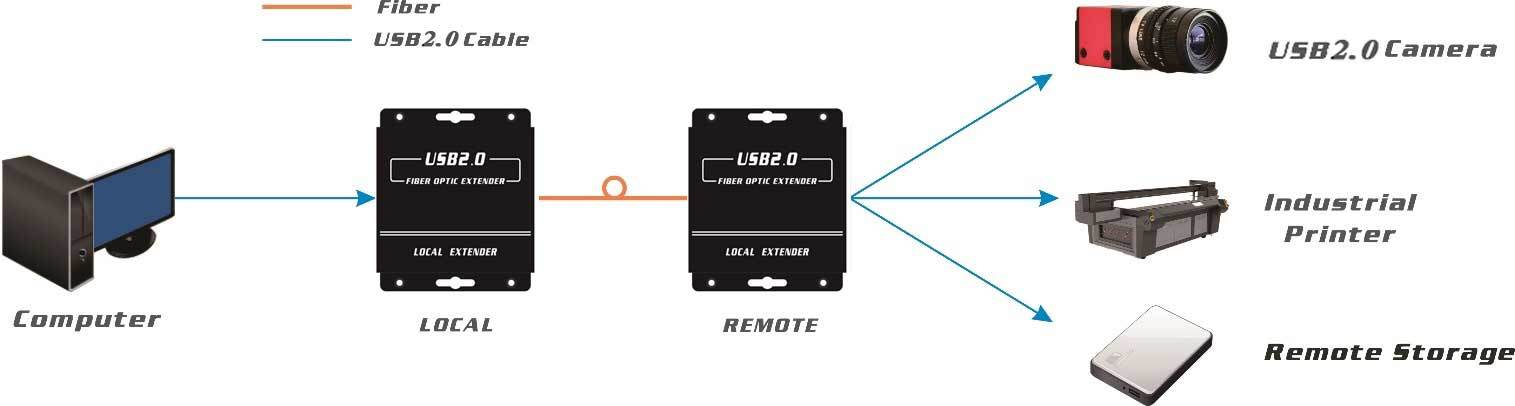

Application
Ordering Information
| Model | Description |
| LNK-U4F1-2.0 | USB2.0 to Fiber Extender, Single 5V 2A External power supply |
|
|

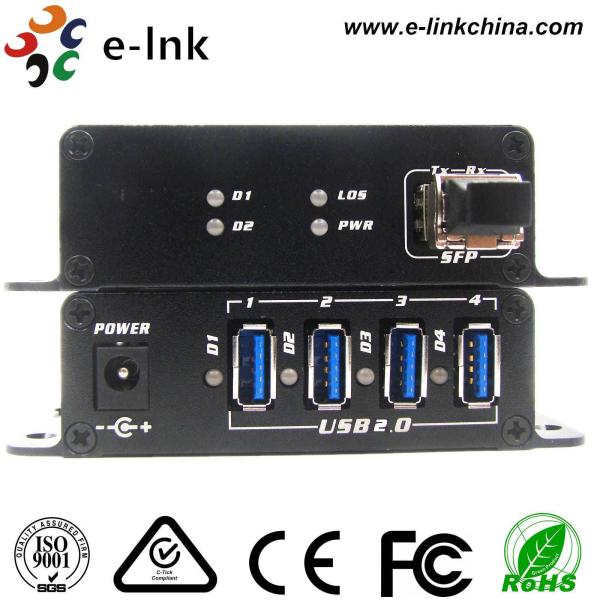

4 Port USB 2.0 Fiber Extender Images
|
