Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter

Name: Mini Industrial 10G5G25G1G100M 8023at to 10GBASEX SFP Media Converter
Brand: E-link
Price: 1 USD

Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter Manufactures

Brand Name : E-link

Model Number : LNK-IMC10GP60-SFP+

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

PoE Standard : IEEE802.3af/at

Mounting Options : DIN-Rail/Wall-mount

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 48~57VDC, Redundant Power (4-pin Terminal Block)

Power Consumption : 65W Max

Contact Now

Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter

Advantages

► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface

► Compliant with IEEE802.3af/at protocol

► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode

► Extensive LED indicators for network diagnostics

► 48~57VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

LNK-IMC10GP60-SFP+ is Industrial-grade 10G 802.3at PoE Media Converter providing non-blocking wire-speed performance and great flexibility for 10Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10GP60-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40℃ to 80℃.


Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter

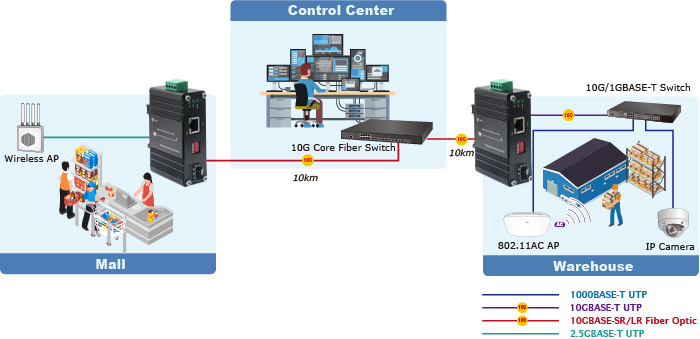

Application

Ordering Information

Model	Description
LNK-IMC10GP60-SFP+	Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
SFP Options	► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
SFP Options	► SFP+ module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately.
