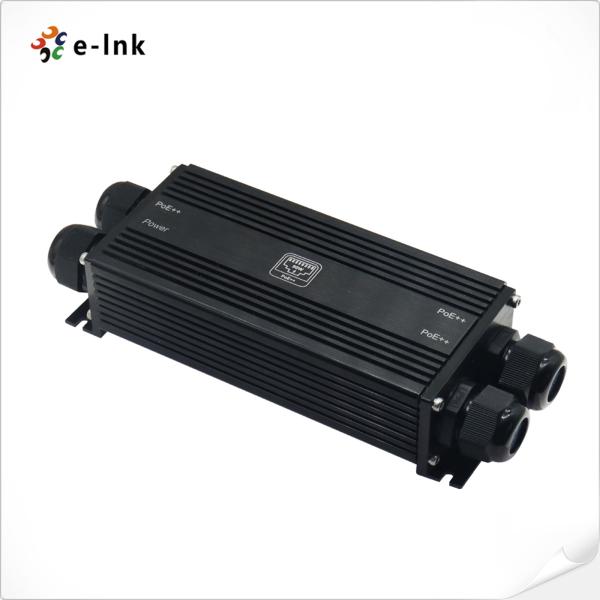

IP67 Waterproof Industrial Gigabit PoE Switch IEEE802.3af/at/bt
Overview
LNK-WP-IPS103 is an industrial-grade IP67-rated Gigabit PoE Switch that utilizes Power over Ethernet
technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission
distance while providing standard PoE power supply of 48V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this
switch operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh
environments. It is ideally suited for security surveillance and network engineering applications.
Features
► IP67-rated aluminum case
► 3 x 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 48 ~ 57V DC Power Input
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kb jumbo frame support in 1000Mbps full-duplex mode
► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment
Specification
| Ethernet Port |
| PoE Port |
3 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af/at/bt |
| PoE Power Supply Type |
Mid-span and End-span |
| PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| PoE Output Power |
Single Port Maximum 90W,
Total 270W
|
| Power Input |
| Input voltage |
48 ~57V DC |
| Power port |
DC, M25 x 1.5 Cable Glands |
| Switch Property |
| Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Forwarding Modes |
Store and Forward |
| MAC Table |
2K |
| Switching Capacity |
6Gbps |
| Packet Forwarding Rate |
4.46Mpps |
| Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Environment |
| Surge Immunity |
6KV, Standard: IEC |
| ESD Protection |
6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
| Protection Level |
IP 67 |
| Explosion-Proof Rating |
IK10 |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Operating Humidity |
0~95% (non-condensing) |
| Physical Parameter |
| Dimensions (WxDxH) |
195 x 75 x 46 mm |
| Weight |
0.6 kg |
| Casing |
Aluminum Case |
| Mounting Options |
Wall-mount |
| Certifications |
| Certifications |
CE, FCC, RoHS |
Order Information
| Model |
Description |
| LNK-WP-IPS103 |
IP67 Waterproof Industrial Gigabit PoE Switch |
| Mounting Options |
Wall Mount Bracket is included. |
