DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Advantage
· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)
· Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
· Input Voltage: DC18V~48V (POE: DC48V).
· Support Power over Coax & Power over Ethernet at same time.

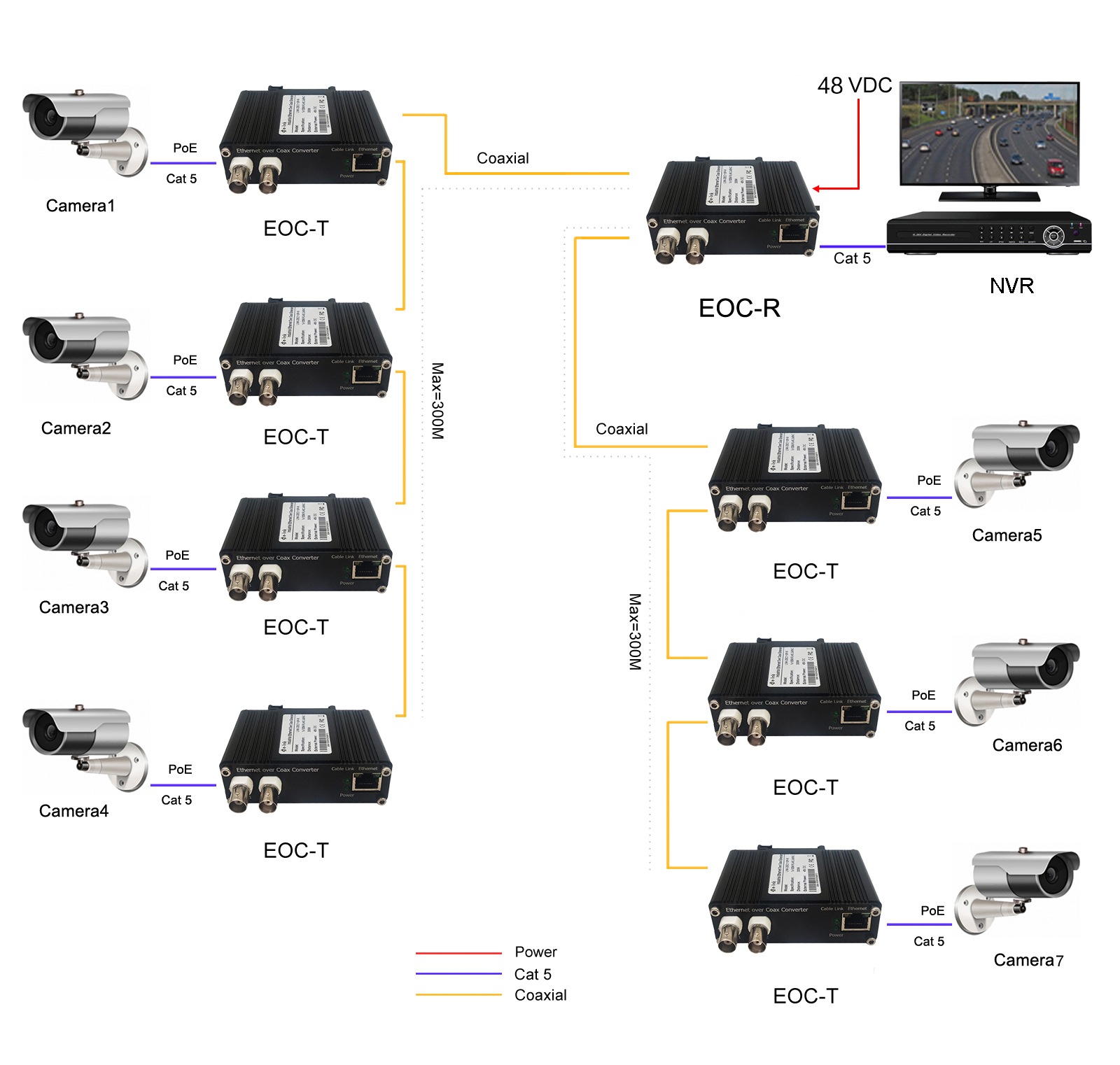

· 2pc BNC design, support to connect Max. 7 channels branch line
Overview
The LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet
Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing
coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance
is up to 1200M(Power: 300M). 2pc BNC design supports to connect 2 channel branch lines at same
time. The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to
100Mbps. It has excellent lightning protection and Anti-interference.

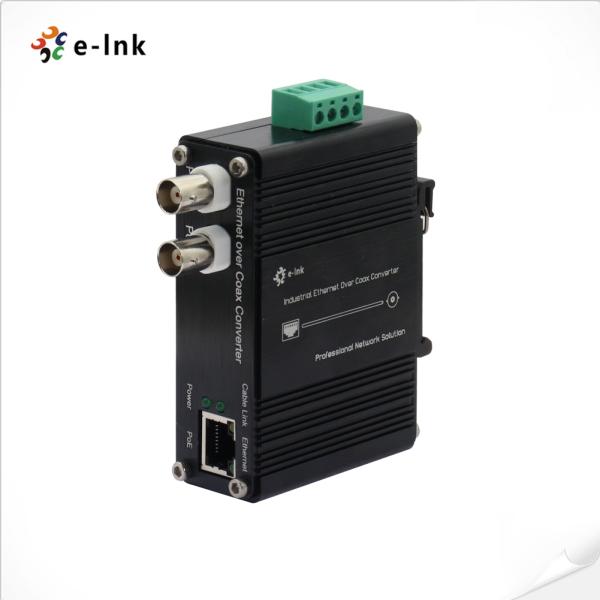

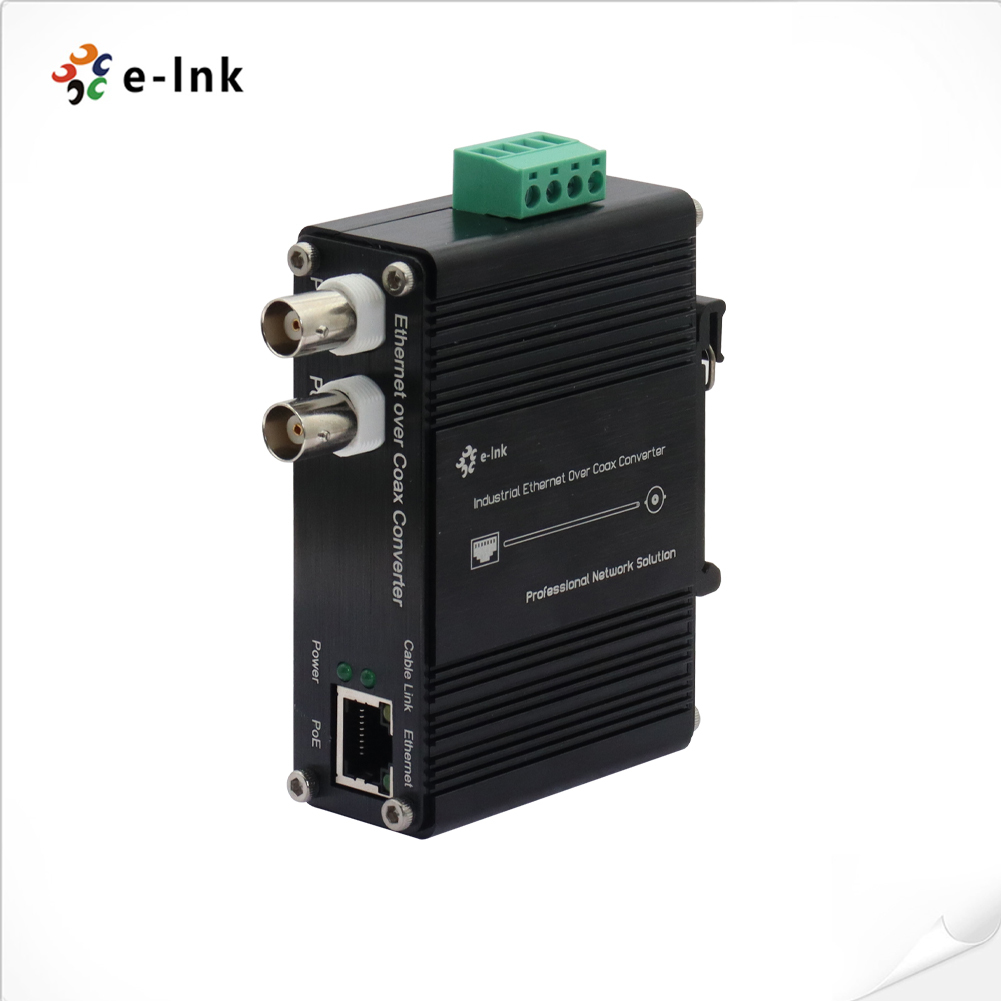

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender Picture
Application

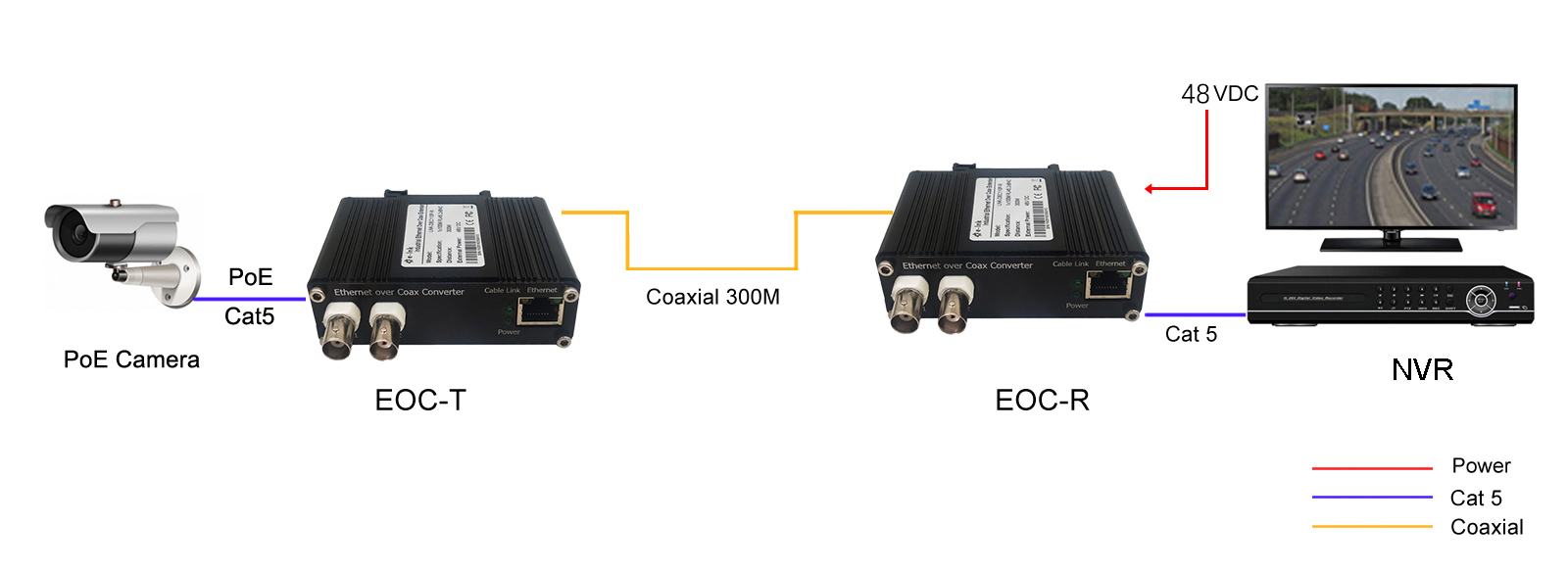

Technical Indexes
| Ethernet |
| Standards | IEEE802.3 10Base-T |
| | IEEE802.3u 100Base-TX |
| | IEEE802.3af Power Over Ethernet |
| | IEEE802.3at Power Over Ethernet |
| Cabling | 10Base-T: Cat 3,4,5, or above |
| | 100Base-TX: Cat5 or above |
| Maximum Distance | Cat5UTP up to 100m |
| Connector | 1 x RJ45 |
| Coaxial |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 1 BNC (female) |
| Distance | Up to 1200m (no PoE), 300m (with PoE) |
| Data Rate |
| Downlink (TX to RX) | 90Mbps (Max.) |
| Uplink (RX to TX) | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Protection |
| Reverse Polarity | Present |
| Electrical and Mechanical |
| Input Power | DC18V~48V (PoE: DC48V) |
| Power Consumption | 8W Max. (PoC not in use) |
| | 60W Max. (Poc in use) |
Ordering Information
| Model | Description |
| LNK-DEC110-T/R | DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
| LNK-DEC110P-T/R | DIN-Rail EoC Converter with PoE+, 300m transmission distance, including Transmitter and Receiver, not including power supply adapter |
